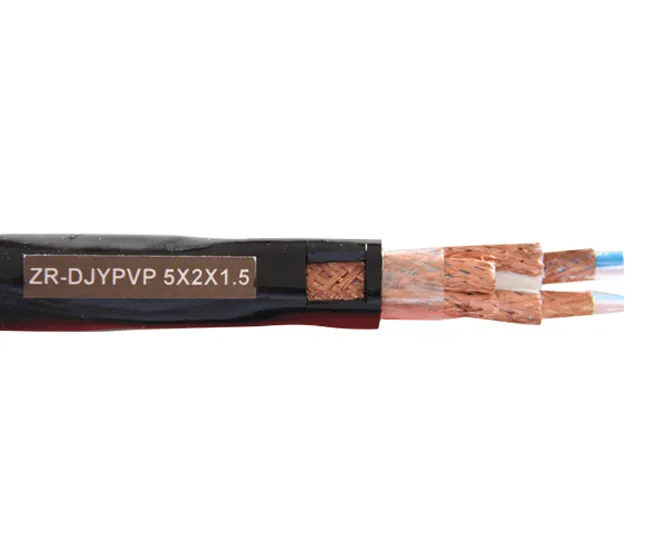

ZR-DJYPVP 5x2x1.5 Heat-resistant Corrosion-resistant Shielded Cable for Computers

Applicable to electrical metal-refining petrochem industries (300/500v) which may have special requirements, eg heat-resistant corrosion-resistant oilproof waterproof and resistant to acid and alkaline. lt is mainly used in thd computer-dominating automatic control system DCS the automatic control system and some instruments as the computer cables.

Executive Standard

Q/ZHGK-008.2-2008 Flameproof tests are done according to GB/T18380-2008,GB/T19216-2003.

Service Characteristics

1. Rated voltage: U₀/U300/500V.

2. Max working temperature:F₄₆≤ 200°C., PFA₂≤260°C., Silicon rubber ≤ 180°C.

3.Min environmental temperature: PVC sheath: fixed laving: -40°C., Non-fixed laying -15°C..

4. Laying temperature:PVC sheath: ≥ 0°C.,Fluoroplastics and silicon rubber sheath: ≥ -25°C..

5. Allowed bending redius: ≥ 6 times the outer diameter of the unarmed cable, ≥ 12 times the outer diameter (copper tape shielded or steel tape armored cable).

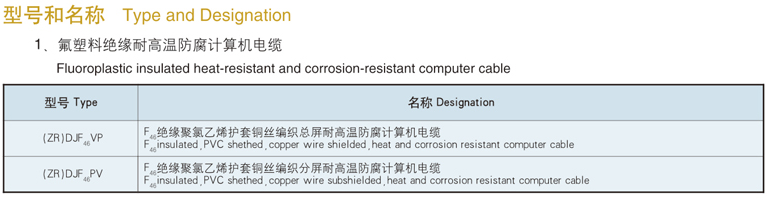

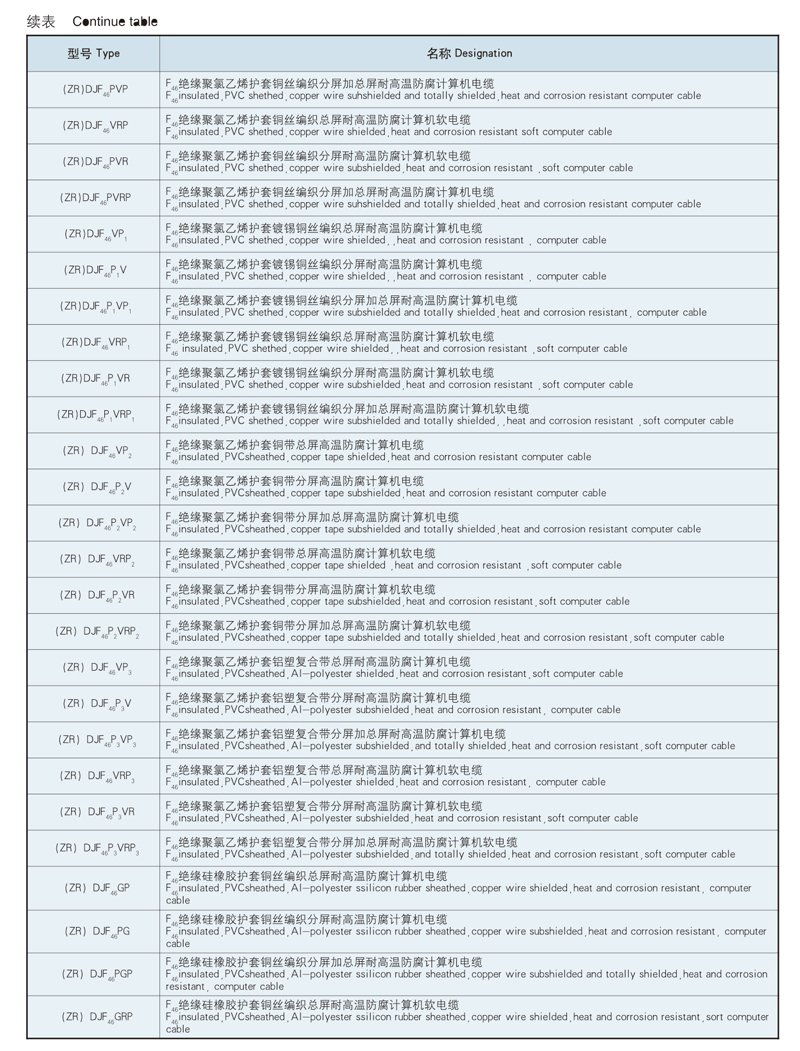

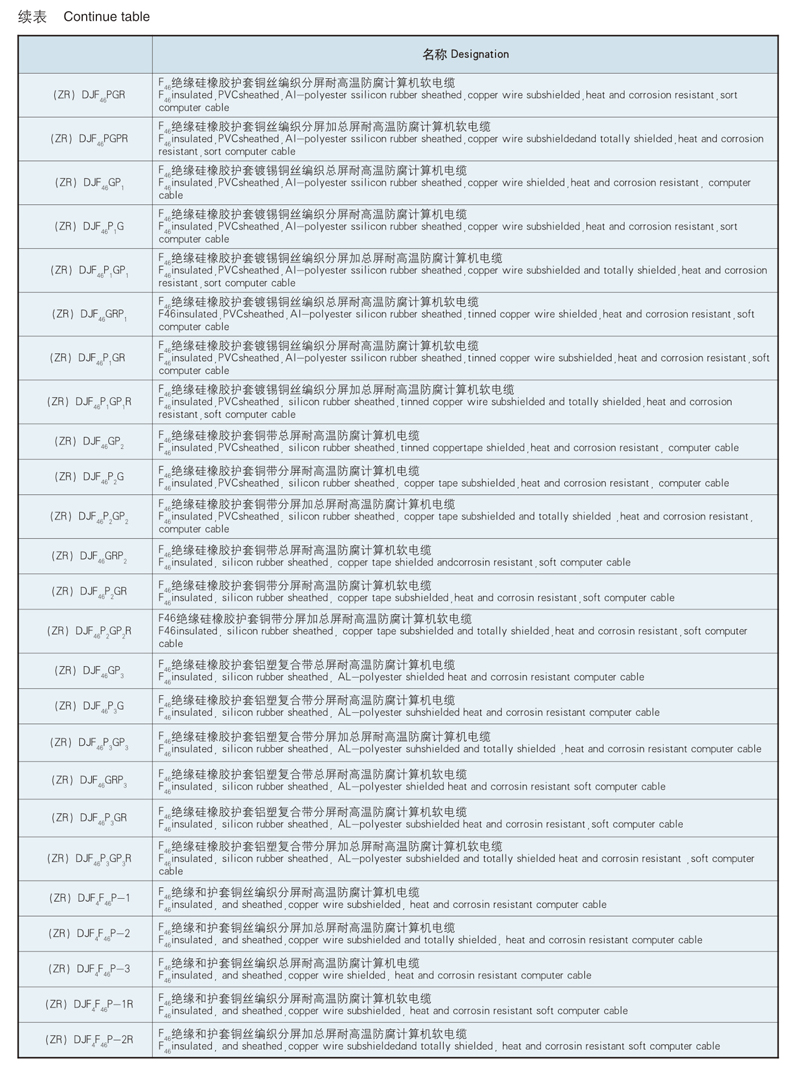

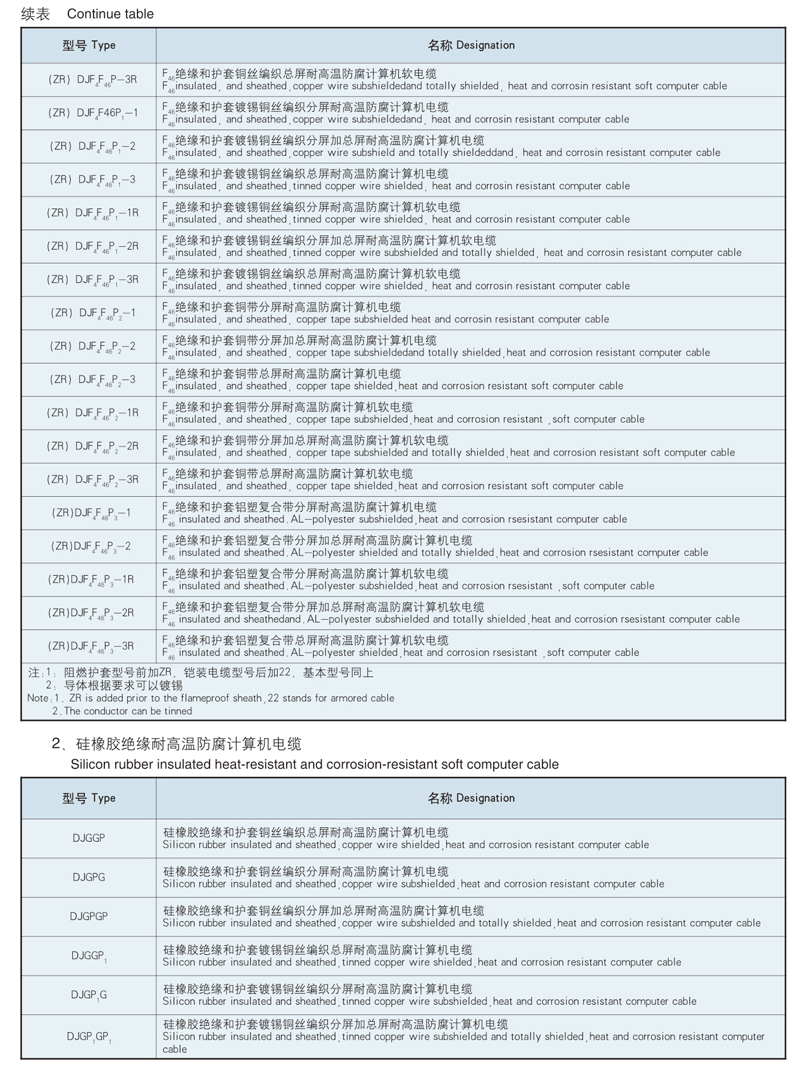

type and designation of heat resistant corrosion resistant shielded cable for computers
