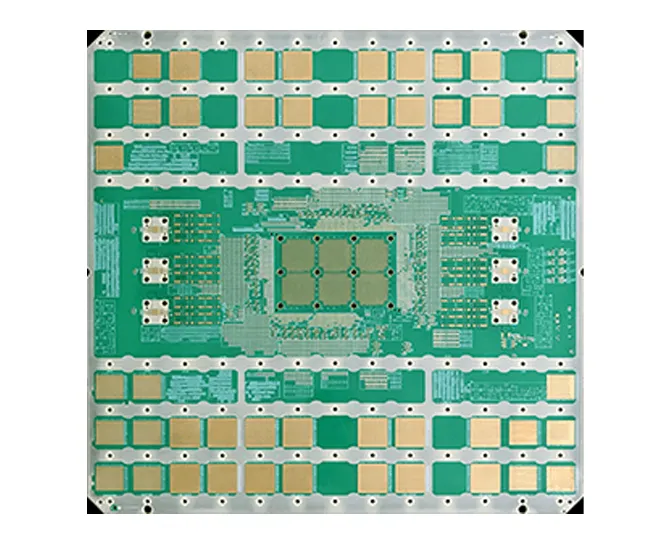

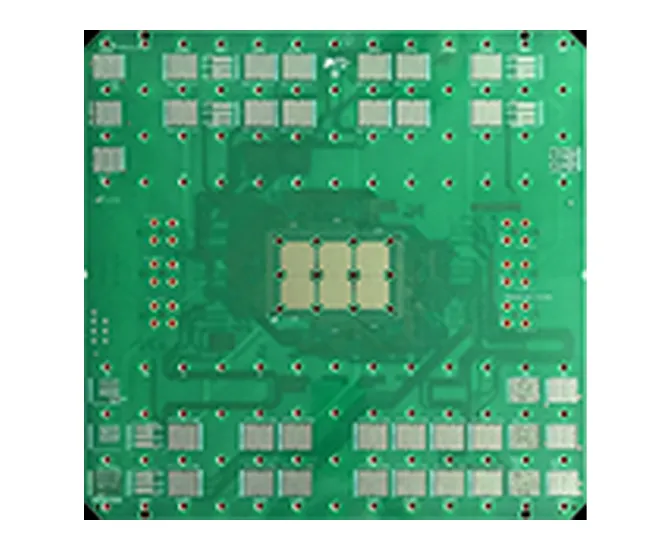

Load Board PCB

The Load Board PCB serves as the critical physical and electrical interface between the Automated Test Equipment (ATE) and the Device Under Test (DUT). Mounted on a test handler or prober, it accurately routes signals from the tester’s resources to the packaged IC’s pins, enabling comprehensive functional, parametric, and reliability testing to screen out defects and ensure only high-quality chips proceed to the market.

Core Features & Advantages

  • High-Fidelity Signal Integrity:
    Engineered with controlled impedance channels, optimized grounding, and low-noise design to ensure accurate signal transmission and measurement for high-speed digital, RF, and mixed-signal ICs.

  • Robust Construction & Durability:
    Built to withstand mechanical stress, repeated insertions, and thermal cycling in high-volume production test environments, ensuring long-term reliability and stability.

  • Platform-Specific Compatibility:
    Designed to interface seamlessly with major ATE platforms including Teradyne Ultraflex, 93K, Advantest V93000, T2000, and other test system series.

  • Rapid Customization & Turnkey Support:
    Full design, prototyping, and volume manufacturing support for custom load boards, including socket integration, DUT board design, and validation assistance.

  • Yield & Quality Assurance:
    Enables efficient final test (FT) of packaged ICs to identify functional faults, parametric outliers, and reliability risks, preventing defective units from reaching end products.

Typical Specifications

  • Materials: High-speed laminates (Rogers, Megtron), high-Tg FR4

  • Layer Count: 6 to 20+ layers

  • Impedance Control: Tight tolerance (±5–8%) for critical nets

  • Surface Finishes: ENIG, ENEPIG, selective hard gold for contact areas

  • Interface Support: Spring pins, sockets, coaxial connectors, and custom fixtures

  • Design Features: Optimized power delivery networks (PDN), guarded traces, and thermal management

Primary Applications

  • Semiconductor Final Test (FT): Functional and parametric testing of packaged ICs (BGA, QFN, etc.)

  • System-Level Test: Burn-in testing, reliability validation, and characterization

  • Automated Production Testing: High-volume sorting and binning on handlers and probers

  • Engineering Validation: Prototype performance analysis and failure diagnosis

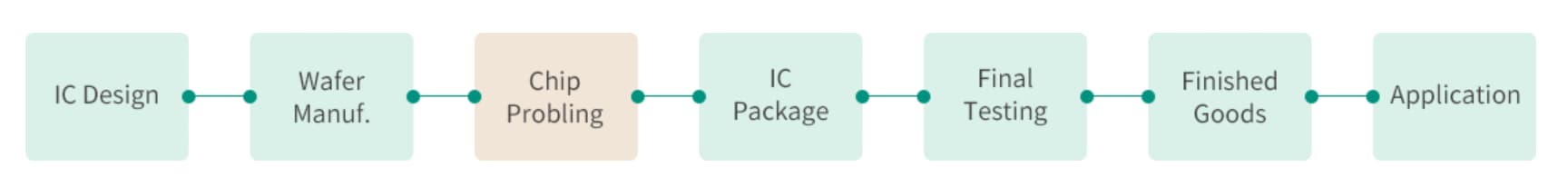

Flow of Load Board PCB


Competence of Load Board PCB
