Control Cable Used in Instruments and Shielded Cable For Digital Circulating Detection

Used in the electrical instruments with the rated voltage:450/750V or lower. The circulating detection devices employ Al-polyster film shield and copper wire shield,which possesses good anti-interference property. Thus.it is used in computer detecting and controlling devices.

Executive Standard

Q/ZHGK-006-2008 Flameproof tests are done according to GB/T18380-2008.

Service Characteristics

1.Rated voltage: U₀/U 450/750V

2.Max working temperature ≤70°C

3.Laying temperature: ≥ 0°c

4.Allowed bending radius: ≥ 10 times the outer diameter of the unarmored cable

≥ 12 times the outer diameter of the copper tape shielded or steel tape armored cable.

Type and Designation

Instrumental control cable

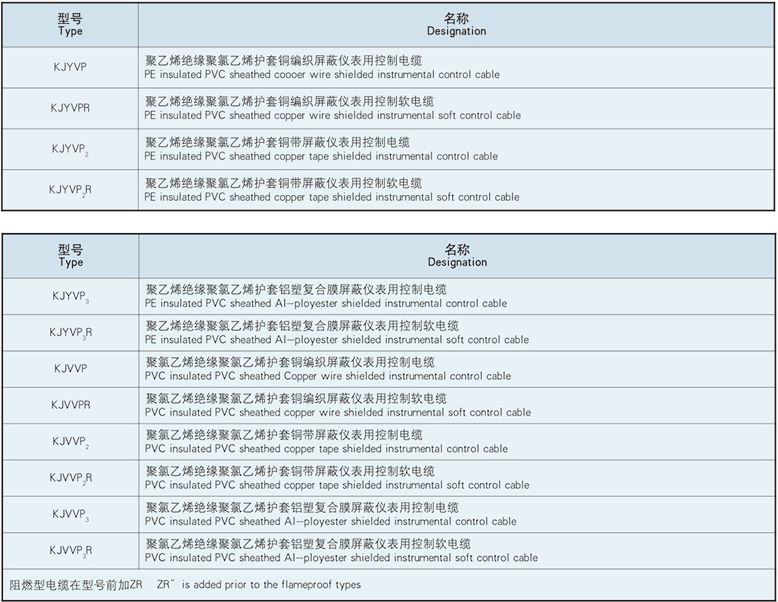

type and designation of instrumental control cable

Data logging system screened cable

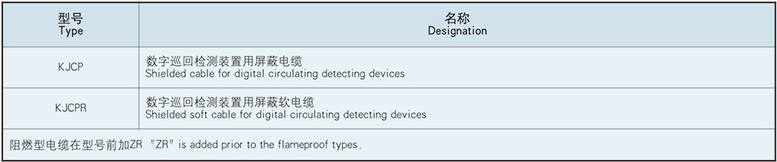

type and designation of data logging system screened cable

Codes and Meanings

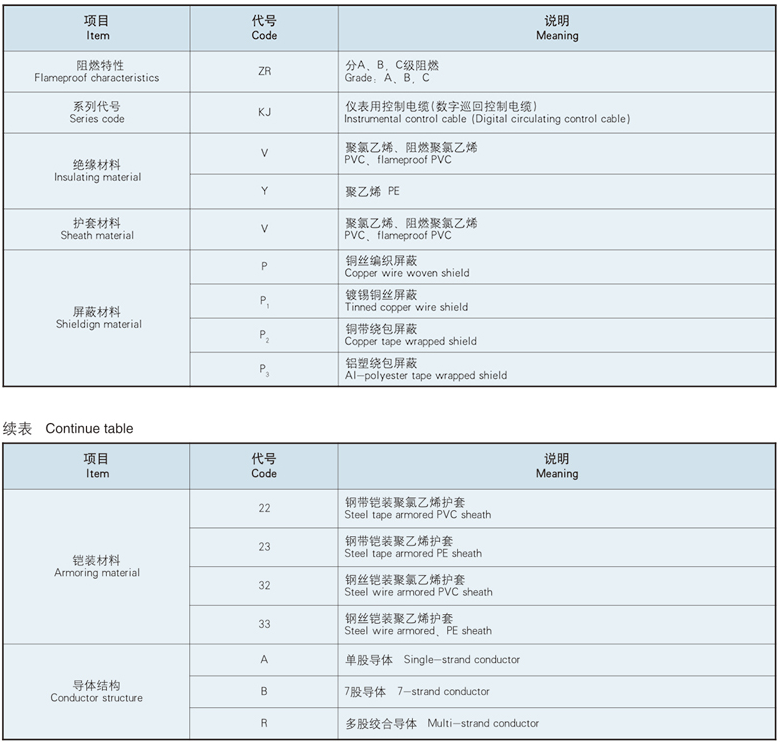

codes and meaning of data logging system screened cable

Main Technological Indexes

1.The DC resistance of the cable (GB/T3956).

2.Insulation resistance at 20°c ≥ 5000MΩ/km,the cable can bear 50Hz 2.0kV/5min without puncture.

Specifications and Structure Parameters

Refer to the plastic insulated control cable and the control cable for computers (of the same structure).
