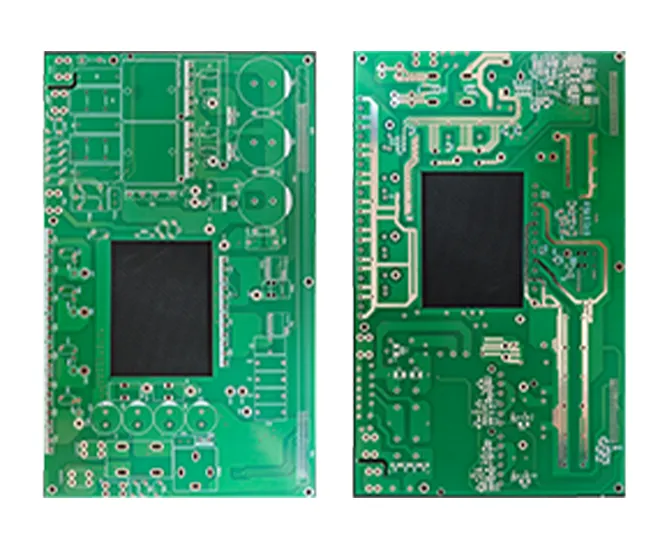

2 Layer PCB

Professional 2 layer PCB manufacturing with fast turnaround and high precision. Custom double-layer PCBs for prototyping and volume orders. Competitive pricing worldwide.

Our 2 layer PCBs are manufactured with industry-leading precision using premium FR4 substrate materials. We specialize in producing high-quality 2 layer PCB boards that offer excellent electrical performance, durability, and reliability for a wide range of applications. Whether you need prototype 2 layer PCBs or high-volume production, our fabrication capabilities ensure tight tolerances, clear trace definition, and consistent soldermask coverage.

We offer multiple surface finishes such as HASL, ENIG, OSP, and immersion silver to suit different assembly and environmental requirements. With a minimum trace and spacing down to 6/6 mil, our 2 layer PCBs support complex designs while maintaining cost-effectiveness.

Application Areas

Our 2 layer PCBs are widely used in various sectors, including:

Consumer electronics (smartphones, wearables)
Automotive control systems
Internet of Things (IoT) devices
Industrial automation controllers
LED lighting products

Technical Capabilities & Certifications

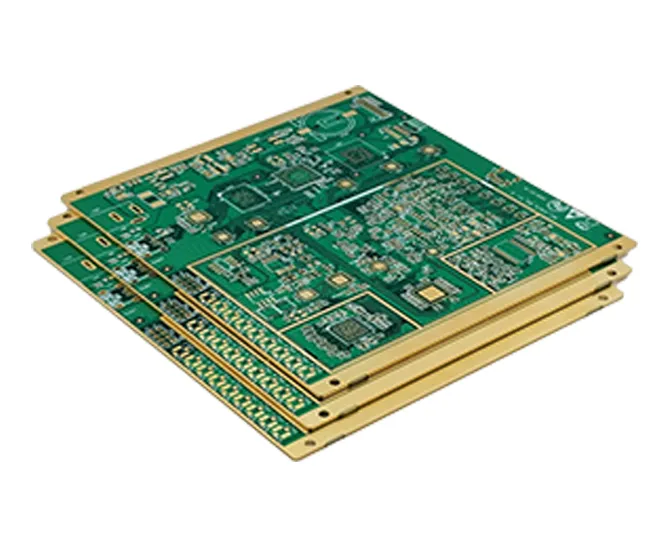

Standard FR4 material with options for high TG
Board thickness from 0.4mm to 2.0mm
Surface finish: HASL (lead-free), ENIG, OSP, immersion silver
Minimum trace/space: 6/6 mil (custom options available)
Fully compliant with IPC Class 2 and RoHS standards
100% electrical testing and AOI inspection
ISO 9001 certified manufacturing processes

Lead Time & MOQ

Prototype orders ready in 24-48 hours
Mass production lead time: 5-10 business days
Minimum order quantity (MOQ): as low as 5 pcs
Flexible batch sizes to accommodate startups and OEMs alike

Customer Testimonials

“China 365PCB delivered flawless 2 layer boards for our IoT sensors with great speed and quality.” – Lucas M., AeroLink Systems

FAQ

Q1: What is the typical turnaround time for 2 layer PCB manufacturing?

A: Our standard turnaround for 2 layer PCBs ranges from 24 to 48 hours for prototypes, and 5 to 10 business days for volume production orders.

Q2: Can you manufacture 2 layer PCBs with custom thickness and surface finish?

A: Yes, we offer flexible thickness options including 1.2mm and 1.6mm, along with various surface finishes like HASL, ENIG, OSP, and immersion silver.

Q3: What is the minimum trace and spacing capability on your 2 layer PCBs?

A: Our 2 layer PCB manufacturing supports a minimum trace/space of 6/6 mil, suitable for most standard electronics applications.

Q4: Do you provide electrical testing and quality assurance for 2 layer PCBs?

A: Absolutely. Every 2 layer PCB undergoes 100% electrical testing and AOI inspection to ensure compliance with IPC Class 2 standards.

Q5: What industries commonly use 2 layer PCBs?

A: 2 layer PCBs are widely used in consumer electronics, automotive controls, IoT devices, industrial automation, and LED lighting products.
