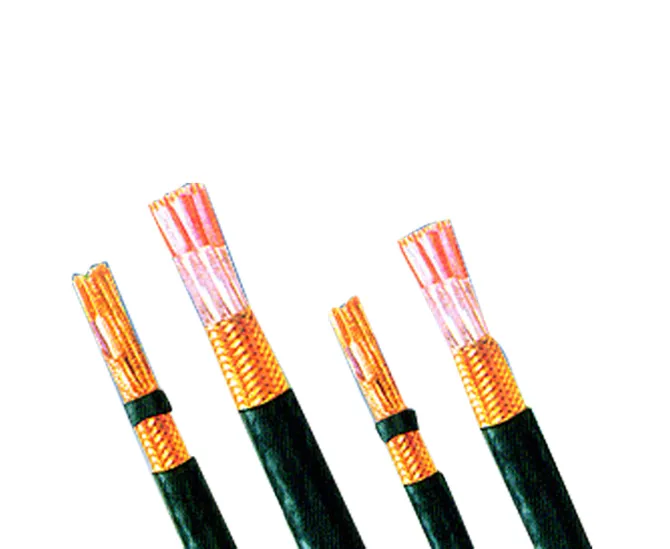

Shielded Cable (DCS Cables Included) for Computers

Applicable to electrical, metal retal refining, petrochem indrstries, as the control cables of the automatic control system (computerized) and the distributed control system(DCS) and as the computer cables for detecting or measuring instruments.

Executive Standard

Q/ZHGK-008.1-2008 (Eqivalent to BS5308) Flame proof tests are done according to GB/T18380-2008.

Service Characteristics

1. Rated voltage: U₀/U 300/500V.

2. Max.working temperature: Peinsulation: ≤ 70°C；XLPE insulation: 90°C

Low-smoke halogen-free flameproof PO: 70°C; Low-smoke halogen-free flameproof cross-linked PO: 90°C/125°C.

3. Min. environmentaltemperature:PVC sheath: -40°C(fixed laying)，-15°C (non-fixed laying).

4. Laying temperature: ≥ 0°C.

5. Allowed bending radius:

≥ 6 times the outer diameter of the unarmored cable

≥ 12 times the outer diameter of the copper tape shielded or steel tape armored cable.

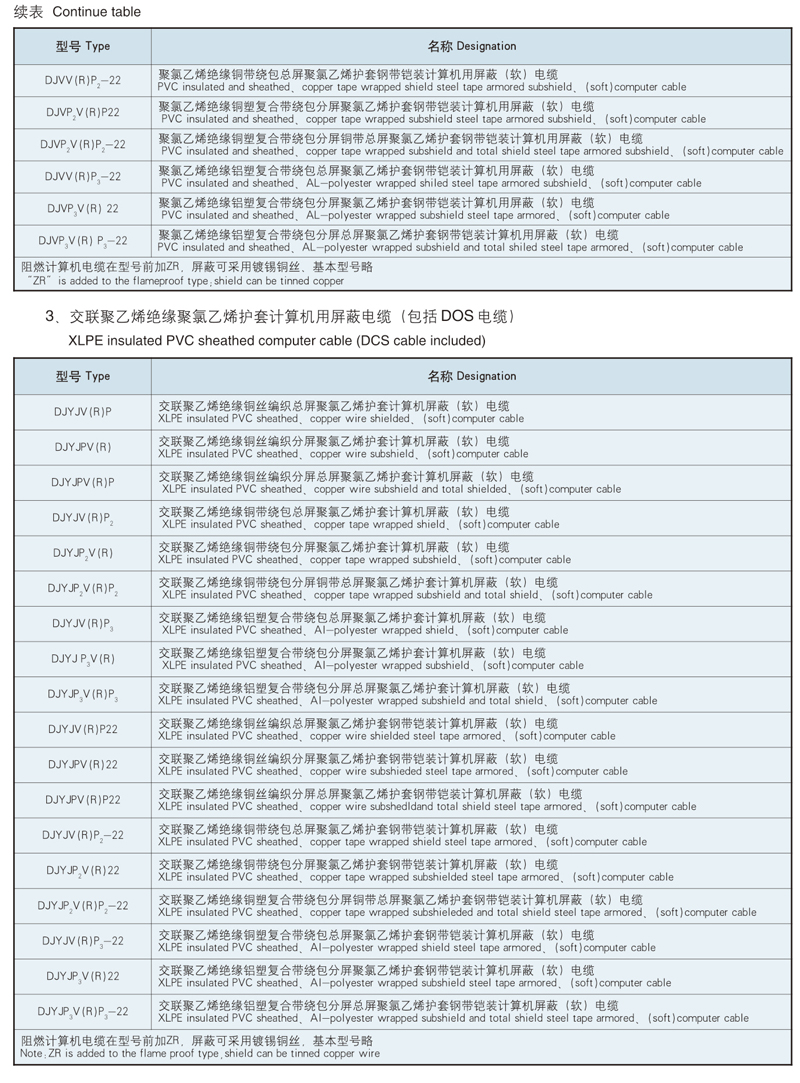

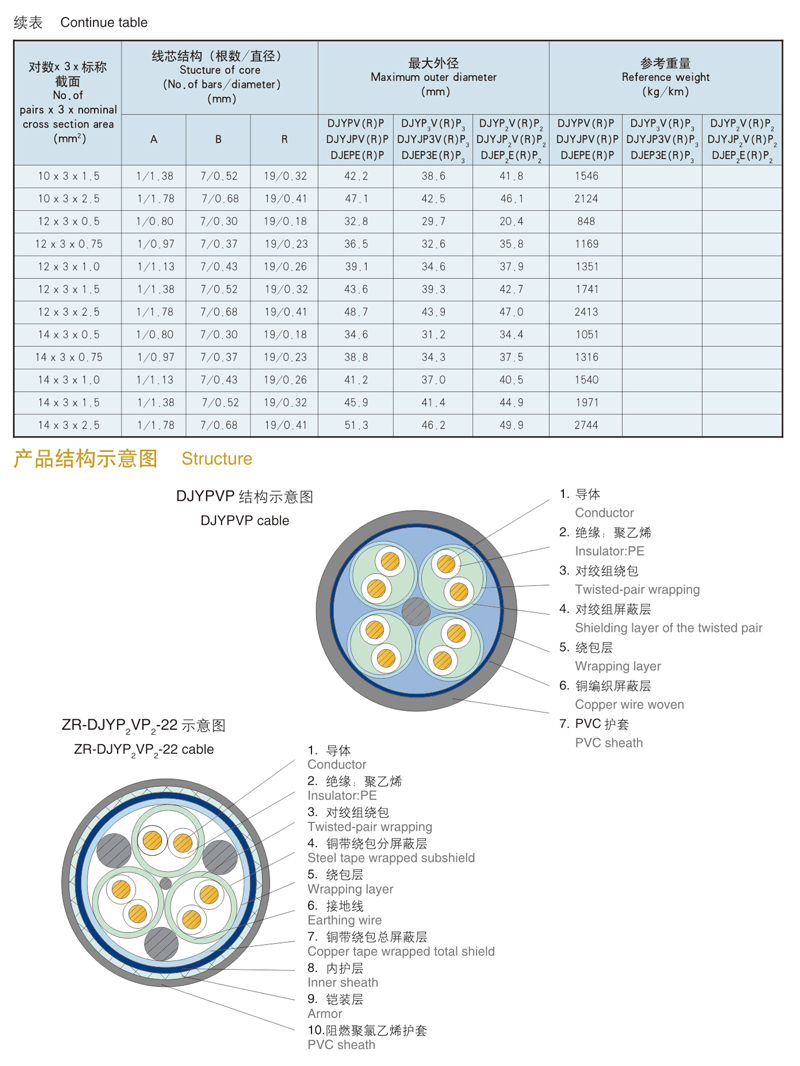

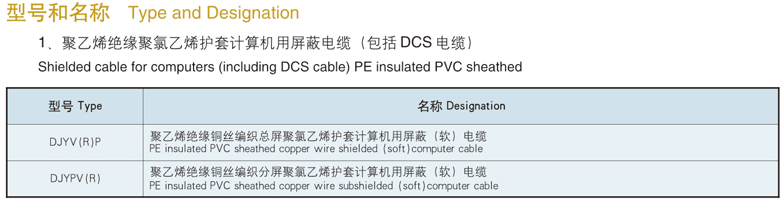

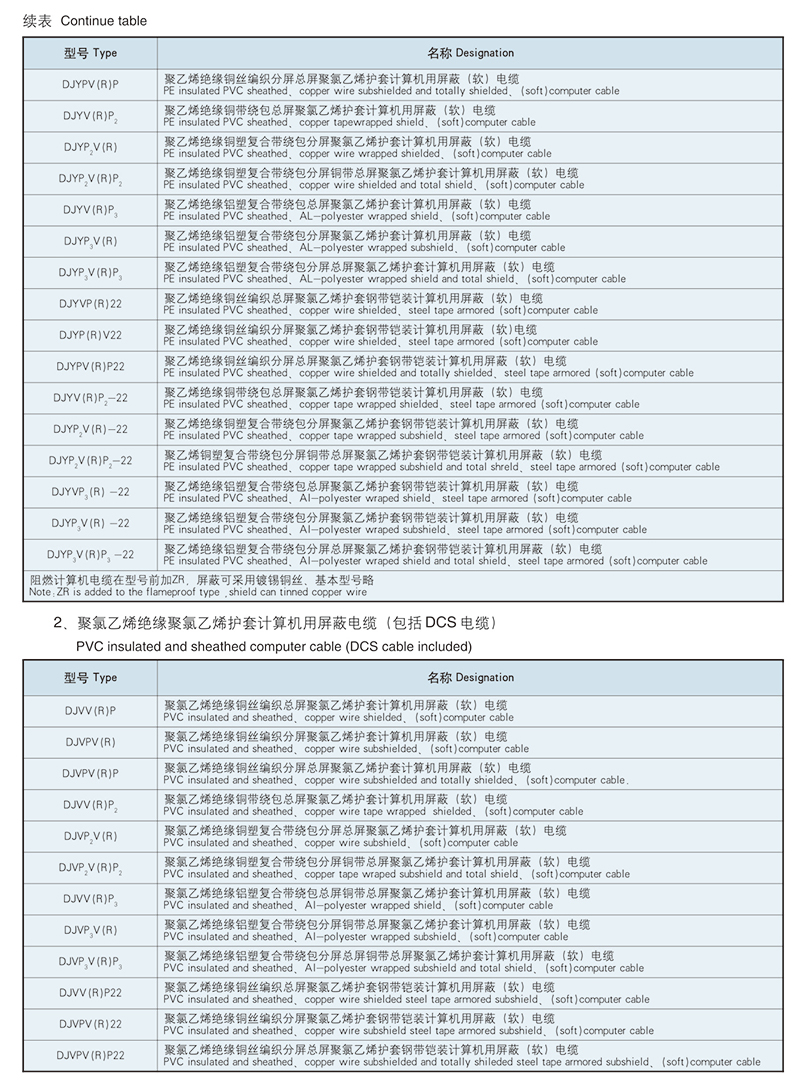

type and designation of shielded cable dcs cables included for computers
