Core Electronic Assembly Capabilities
Comprehensive Service Portfolio

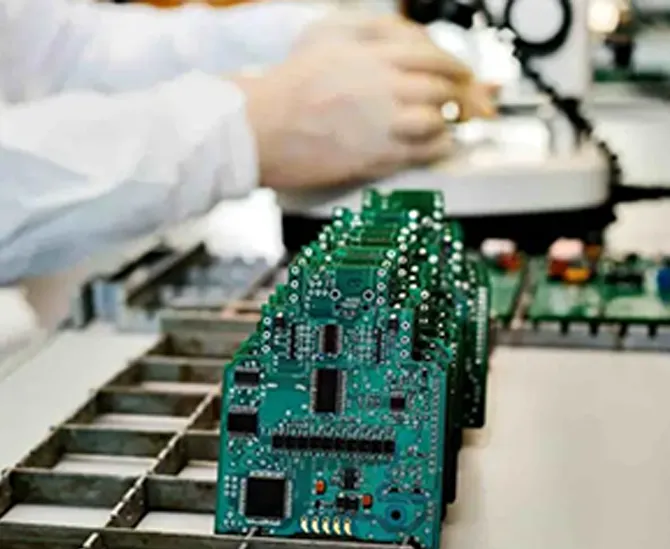

PCB Assembly: Supports SMT (01005/BGA/fine pitch), THT (through-hole), and mixed-technology assemblies – compatible with single/double/multilayer PCBs
Cable Harness Assembly: Custom shielded/unshielded, coaxial, and fiber optic harnesses – UL/RoHS compliant, with precise crimping and routing
Box Build Assembly: End-to-end product integration (PCBs + harnesses + enclosures + testing) – delivers ready-to-ship finished goods
Production Volumes & Lead Time
Prototypes (1–10 units): 3–7 business days – includes DFM review to optimize assembly feasibility
Low Volume (10–1000 units): 5–12 business days – ideal for pre-production testing or market validation
High Volume (1000+ units): 10–20 business days – uses automated lines (SMT placement, harness crimping) for consistency
Testing & Quality Control
AOI (Automated Optical Inspection): Detects SMT component placement errors and solder defects
X-ray Inspection: Verifies BGA/QFN solder joints (hidden under components) for reliability
Functional Testing & ICT: Validates product performance and circuit continuity – ensures 99.9% first-pass yield
Material & Finish Options
PCB Substrates & Components
PCB Materials: FR4 (standard consumer/industrial use), Rogers (high-frequency telecom/aerospace), flexible PCBs (wearables/automotive)
Components: 100% RoHS-compliant, lead-free options; custom sourcing for hard-to-find or obsolete parts (with traceability)
Cable & Harness Materials
Cable Types: Shielded (EMI/RFI protection for industrial/medical), unshielded (cost-effective consumer use), coaxial (high-frequency telecom), fiber optic (data centers)
Connectors: Industrial (Molex/TE), automotive (AMP), medical (ISO 13485 compliant) – matched to harness application
PCB Finishes & Packaging
PCB Surface Finishes: HASL (cost-effective), ENIG (fine pitch/BGA), OSP (lead-free), immersion silver (high-speed signal)
Custom Packaging: Anti-static bags, labeled boxes, blister packs – includes batch codes, compliance marks (CE/RoHS) for traceability
Application Areas
Consumer Electronics: PCB assembly for smartphones/wearables, cable harnesses for home appliances – high-volume, cost-effective solutions
Medical Devices: PCB + box build for diagnostic equipment, shielded harnesses for patient monitors – ISO 13485 compliant, sterile finishes
Automotive Electronics: SMT/THT mixed assembly for ECUs, high-temperature harnesses for engine bays – AEC-Q200 component compliance
Industrial Automation: Ruggedized box builds for PLCs, shielded harnesses for factory sensors – IP-rated enclosures, EMI protection
Aerospace & Defense: High-reliability PCB assembly (MIL-SPEC), fiber optic harnesses for avionics – X-ray 100% inspection
Telecommunications: High-frequency PCB (Rogers) for 5G base stations, coaxial harnesses for data centers – signal integrity optimization
Why Choose Our Electronic Assembly Services
One-Stop Solution: Integrates PCB assembly, cable harness, and box build – eliminates coordination with 3+ vendors, reducing project delays by 40%
Expert Team: Technicians with 5+ years in electronic assembly – specialize in complex mixed-technology (SMT+THT) and fine-pitch (01005/BGA) projects
Advanced Equipment: Automated SMT lines (Yamaha/Fuji), precision harness crimpers, and X-ray testers – ensures consistent quality at scale
Flexible & Fast: Supports 1-unit prototypes to 100,000+ unit production; 3–7 day prototype turnaround to accelerate R&D
Strict Compliance: Adheres to ISO 9001 (quality), IPC-A-610 (PCB assembly), RoHS (environmental) – meets industry-specific standards (AEC-Q200, ISO 13485)
Customer Testimonials
“China 365PCB's electronic assembly services ensured our project met all quality and timeline requirements. Their one-stop PCB+harness solution saved us from managing multiple suppliers.”
— John D., Consumer Electronics
“Their expertise in cable harness and box build assembly was critical for our complex medical device. The shielded harnesses and sterile finishes met our strict compliance needs.”
— Emma L., Medical Device Manufacturer
FAQ
Q1: What does electronic assembly include?
A1: It’s a comprehensive service covering three core areas: PCB assembly (SMT/THT/mixed technology), cable harness assembly (shielded/unshielded/coaxial), and box build assembly (integrating PCBs, harnesses, enclosures into finished products). It delivers end-to-end solutions from components to ready-to-ship goods.
Q2: Can China 365PCB handle both small prototypes and large-scale production?
A2: Yes, we support all volume ranges. Prototypes (1–10 units) take 3–7 days for R&D validation; low volume (10–1000 units) takes 5–12 days for pre-production; high volume (1000+ units) uses automated lines for 10–20 day turnaround – no need to switch suppliers as your project scales.
Q3: What quality controls are implemented in your electronic assembly process?
A3: We use multi-layer testing: AOI for SMT placement defects, X-ray for hidden BGA/QFN solder joints, ICT for circuit continuity, and functional testing for product performance. All processes follow IPC-A-610 standards, ensuring 99.9% defect-free assemblies.
Q4: Are your electronic assembly services RoHS compliant?
A4: Absolutely. All components (resistors, connectors, cables) are RoHS-compliant to restrict hazardous substances, and assembly processes (solder paste, cleaning) follow RoHS guidelines. We provide compliance certificates upon request for your audit needs.
Q5: What industries do you serve with electronic assembly?
A5: We serve consumer electronics (smartphones), medical devices (diagnostic gear), automotive (ECUs), industrial automation (PLCs), aerospace & defense (avionics), and telecommunications (5G base stations). Each industry gets tailored solutions (e.g., sterile finishes for medical, high-temperature parts for automotive).
