Sensors may depend on precision excitation.
Memory can demand large transient currents.
Wireless transmitters may create short but significant current bursts.
The entire product may appear digitally correct and still fail because the power system cannot maintain the required voltage under real operating conditions.

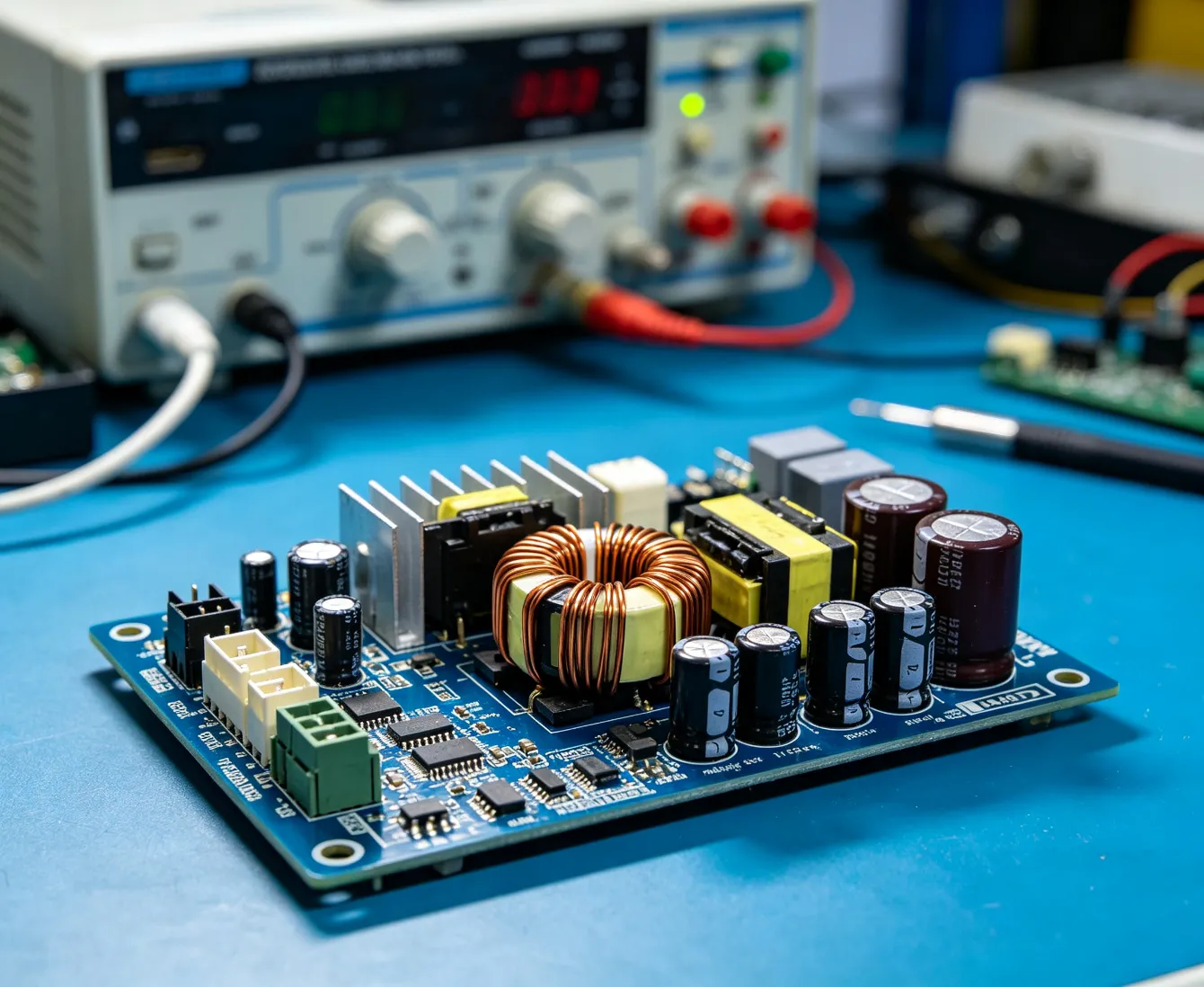

365PCB Power Supply Design treats power as an engineered product infrastructure connecting:
The objective is not simply:
Produce 3.3 V.
The objective is:
Deliver the Correct Voltage, at the Correct Time, With the Required Current, Noise, Stability and Reliability.
Start With the Power Requirements
A professional power architecture begins by defining the load.
Questions include:
What source is available?
Which voltages are required?
What are:
Typical Current
Peak Current
Transient Current
and
Startup Current?
How clean must each rail be?
Which rail must turn on first?
How much input power can be lost as heat?
Does every microamp matter?
How much heat can the enclosure remove?
What abnormal input/output conditions must be tolerated?
Power Requirements Become Power Architecture.
Power Budget Engineering
The complete power budget should identify major loads.
For example:
=
This should be evaluated not only at nominal operation but across operating modes.
Operating-Mode Power Budget
A product may have very different power states.
Examples:
OFF
Standby
Sleep
Idle
Normal
Peak Compute
Wireless TX
Startup
Fault
Each state creates a different power profile.
Design for the Maximum Relevant Electrical Condition — Not Only the Average Use Case.
Peak vs Average Power
Average power determines:
energy consumption
long-term thermal load
Peak power determines:
regulator sizing
capacitor support
voltage droop
connector current
A wireless modem may consume moderate average power while creating large short-duration TX bursts.
A CPU may change load extremely quickly.
Average Power and Transient Power Are Different Engineering Problems.
Power-Tree Architecture
A complex product may have:
24 V Input
12 V Intermediate
5 V
3.3 V
1.8 V
1.1 V Core
or another architecture.
The power tree should optimize:
Efficiency
Noise
Current Distribution
Cost
Thermal
Sequencing
and
Fault Isolation.
The Power Tree Is the Product's Electrical Distribution Network.
Centralized vs Distributed Power
Several rails generated near one region.
Potential benefits:
simpler power management
fewer converters
Potential drawbacks:
longer high-current distribution
voltage drop
local transient problems
Intermediate rail distributed around PCB.
Local regulators generate final low-voltage rails near loads.
Potential benefits:
shorter high-current paths
better local regulation
Put Voltage Conversion Where It Creates the Best System Margin.
Intermediate Bus Architecture
High-performance systems may distribute an intermediate voltage such as:
12 V
or another suitable level,
then generate:
core / memory / I/O rails
locally.
Higher distribution voltage means lower current for the same power:
Lower current can reduce:
copper loss
connector burden
voltage drop
Sometimes Distributing Higher Voltage Makes the PCB Electrically Easier.
Buck Converter Design
A buck converter converts:
It is one of the most common switching regulator architectures.
Engineering variables include:
input range
output voltage
current
switching frequency
inductance
capacitance
control architecture
transient response
ripple
efficiency
But selecting a regulator IC is only the beginning.
The Power Stage, Control Loop, PCB and Load Form One System.
Synchronous Buck
A synchronous buck replaces the traditional freewheel diode with a controlled switching device.
This can reduce conduction losses and improve efficiency, especially at lower output voltages and higher current.
But it introduces:
gate timing
dead time
switching interaction
control complexity
Better Efficiency Requires Better Switching Control.
Boost Converter Design
A boost converter provides:
Higher Output Voltage Than Input Voltage.
Applications can include:
battery-powered products
auxiliary supply generation
Important conditions include:
Input Current
Duty Cycle
Startup
Output Protection
and
Load Dynamics.
As output voltage rises relative to input, input current can become substantial.
Buck-Boost Architecture
Products whose input voltage can move above and below the required output may need buck-boost conversion.
A battery, for example, can begin above a system rail and fall below it during discharge.
The converter must transition between operating regions without disturbing the load.
A Stable Output Across a Moving Input Requires Mode-Transition Engineering.
SEPIC / Other Conversion Topologies
Certain applications may use alternative topologies where input/output conditions or grounding requirements justify them.
Architecture choice should consider:
component count
noise
voltage stress
cost
rather than selecting a topology by familiarity.
LDO Design
Linear regulators remain extremely valuable.
Their advantages can include:
low output noise
simple architecture
fast local regulation
minimal switching EMI
But power loss is approximately related to:
(Vin − Vout) × Iout
Therefore high voltage drop and high current can create substantial heat.
An LDO Trades Electrical Simplicity for Dissipation.
Switching Regulator + LDO Architecture
A common high-performance architecture is:
This can be useful for:
precision analog
clock circuits
The switching converter handles bulk efficiency.
The LDO provides final noise isolation.
Use Efficiency Upstream and Precision Locally.
PMIC Architecture
A Power Management IC may integrate multiple:
buck regulators
sequencers
monitors
power controls
This can reduce:
component count
sequencing complexity
PMICs are especially valuable around processors and SoCs requiring many rails.
But integrated architecture also creates dependency on one device.
Integration Simplifies the Board While Concentrating Power-System Dependency.
Processor Power Architecture
Modern processors can require:
Core Rail
I/O Rail
Memory Rail
Analog Rail
PLL Rail
and other domains.
Each can have different requirements for:
voltage tolerance
sequencing
current
noise
A Processor Is a Collection of Different Electrical Loads Sharing One Package.
FPGA Power Architecture
Large FPGAs can require many supply domains:
Core
Auxiliary
I/O
Transceiver
Memory
PLL
Some can demand high transient current.
Therefore FPGA power design should be coordinated with:
PDN + SI + Thermal + Configuration Sequence.
FPGA Performance Can Be Limited by the Power System Long Before Logic Resources Are Exhausted.
Memory Power
DDR and other high-speed memories may require:
core supply
reference voltages
termination-related power
At high switching activity, current transients can become significant.
Memory Timing Margin Can Be Influenced by Power Integrity.
Analog Power
Precision analog rails emphasize:
rather than only efficiency.
The power architecture may isolate:
reference
from noisy digital loads.
The Same 3.3 V Label Does Not Mean Every 3.3 V Load Wants the Same Power Quality.
RF Power
RF circuits may require especially clean power for:
clock
transceiver analog domains
Noise can appear as:
Phase Noise
Spurs
Receiver Desense
Supply Noise Can Become Spectrum.
Sensor Power
Sensors may require:
precision excitation
low noise
controlled startup
power gating
A sensor supply can directly influence measurement.
In Some Systems, Power Is Part of the Measurement Signal.
Power Sequencing
Some semiconductor devices require rails to turn on/off in a defined order.
A sequence can look like:
Incorrect ordering may create:
excessive current
undefined operation
startup failure
Power-Up Is a System Event.
Power-Down Sequencing
Shutdown can be just as important.
When one rail disappears before another, current may flow through:
protection structures
signal pins
peripheral interfaces
The architecture should define:
and
Power-Down Order.
Controlled Startup Without Controlled Shutdown Is Only Half a Power Architecture.
Reset Architecture
Reset should normally be coordinated with actual power validity.
The system may use:
A device should not begin execution while critical rails are still unstable.
Reset Should Release Because Power Is Ready — Not Because Enough Time Has Probably Passed.
Power-Good Signals
Many regulators provide:
PGOOD.
These can allow downstream logic to determine whether a rail has reached valid regulation.
Power-good signals can feed:
sequencer
supervisor
system controller
Power State Should Be Observable.
Voltage Supervisors
Supervisory ICs can monitor rails for:
undervoltage
overvoltage
reset generation
They can provide stronger startup/reset behavior than relying only on software.
Software Cannot Correct Power That Is Too Low to Execute Software Reliably.
Brownout Engineering
Supply voltage may dip temporarily due to:
battery impedance
current surge
external input disturbance
A system should define behavior during:
Brownout.
Possible outcomes include:
Continue
Reset
Save State
Enter Safe Mode
depending on product requirements.
Undervoltage Lockout
UVLO prevents a converter or subsystem from operating below a defined input region.
This can prevent:
unstable switching
excessive current
incomplete startup
Don't Operate the Power System Where Its Control assumptions are no longer valid.
Overvoltage Protection
Abnormal input voltage can damage downstream electronics.
A product may require architecture-level protection against:
transient overvoltage
incorrect supply
regulator failure
The exact method depends on source and application.
Protect the Product From Electrical Conditions It Cannot Survive.
Overcurrent Protection
A faulted load can draw excessive current.
Current limiting can protect:
regulator
connector
downstream circuit
Techniques can include:
Current Limit
Foldback
Electronic Fuse
depending on requirements.
Fault Current Should Be Controlled Before Copper Becomes the Fuse.
Short-Circuit Protection
A robust power system should define:
What happens when the output is shorted?
Behavior may include:
current limiting
hiccup
shutdown
retry
The correct behavior depends on the product.
Fault Recovery Is Part of Power-System Behavior.
Thermal Protection
Regulators may include internal thermal shutdown.
But good system engineering should not rely on thermal shutdown as a normal operating mechanism.
Protection Is the Last Line of Defense — Not the Thermal Design Strategy.
Reverse-Polarity Protection
External-input products may need protection against incorrect polarity.
Architecture should minimize:
forward loss
voltage drop
thermal dissipation
while protecting downstream electronics.
Human Connection Errors Should Not Automatically Become Product Failures.
Reverse-Current Protection
Some architectures need to prevent current from flowing backward into:
another supply
battery
inactive rail
This can be important in:
redundant supplies
multi-source products
Power ORing
Products with multiple power sources may select or combine them using ORing architectures.
Example:
and
or:
and
Supply B.
The goal is to avoid unwanted cross-current while maintaining power continuity.
Multiple Sources Need Controlled Ownership of the Power Bus.
Ideal-Diode Architecture
An ideal-diode controller can reduce forward voltage loss compared with conventional diode ORing in suitable applications.
This can improve:
efficiency
thermal behavior
especially at higher current.
Redundant Power Architecture
High-availability products may use:
Power Supply A
Power Supply B
with fault isolation.
The product should define:
source priority
transfer
diagnostics
failure behavior
Redundancy Is Useful Only When One Failure Does Not Take Down Both Paths.
Hot-Swap Architecture
Some systems require boards or modules to connect to a live power bus.
This creates major current transients because input capacitors initially appear as a large load.
A hot-swap controller can manage:
inrush
current limit
fault isolation
startup timing
Plugging Into a Live Bus Is a Controlled Transient Event.
Inrush Current
Large input capacitance can cause a high current pulse at connection.
Potential consequences include:
connector arcing
supply droop
fuse stress
reset of other loads
Input Capacitance Is Good for the Load but Can Be Bad for the Source.
Inrush must be intentionally controlled.
Soft Start
Soft start gradually increases converter output.
Potential benefits include:
reduced inrush
controlled rail ramp
reduced startup stress
But ramp time should still satisfy downstream startup requirements.
Start Slowly Enough to Control Current — but Correctly Enough to Meet the System Sequence.
Load-Transient Response
A power supply must handle rapidly changing load current.
For example:
The regulator cannot change inductor current instantaneously.
Output capacitors initially provide the difference.
The result may be:
or
Overshoot.
Regulation Is a Dynamic Problem — Not Only a DC Accuracy Problem.
Load-Step Testing
A powerful validation method is to deliberately switch between load levels and observe:
Vout vs Time.
Measure:
droop
overshoot
ringing
recovery time
A Rail That Measures 1.000 V at Steady State May Still Fail Under a Real Load Step.
Transient Budget
The processor or load may specify an allowed voltage window.
Conceptually:
±
±
±
must remain inside the valid operating region.
Voltage Margin Is a Budget.
Local Bulk Capacitance
Local capacitance can provide energy while the regulator responds.
But more capacitance is not automatically better.
It can affect:
startup
loop stability
inrush
cost
Capacitors Store Energy — and Change the Control System.
Output Ripple
Switching converters naturally create periodic output ripple.
Ripple depends on:
topology
switching frequency
inductance
capacitance
load
Sensitive circuits may require additional filtering.
Ripple Is a Frequency-Domain Specification, Not Just a Peak-to-Peak Number.
Switching Frequency
Higher switching frequency can allow smaller:
inductors
capacitors
but usually increases switching-related losses.
Lower frequency can improve some efficiency conditions but increase component size and may shift EMI concerns.
Switching Frequency Trades Size, Efficiency, EMI and Control Bandwidth.
Frequency Planning
A mixed RF/analog system may intentionally choose converter switching frequencies to avoid sensitive bands.
Potential aggressors include:
DC/DC Fundamental
Harmonics
Beat Frequencies
Power Conversion Has a Spectrum.
This should be coordinated with:
audio
sensor frequencies
where appropriate.
Spread-Spectrum Switching
Certain converters can modulate switching frequency to reduce narrowband EMI peaks.
This may help EMC performance.
But it can spread switching energy over a wider band.
Lower Peak Emission Does Not Mean Zero Noise.
The effect on precision analog or RF systems should still be evaluated.
Inductor Selection
The inductor is central to many switching converters.
Important parameters include:
inductance
saturation current
core loss
temperature
size
An Inductor Is an Energy-Storage Component, a Loss Element and a Thermal Component at the Same Time.
Inductor Saturation
If current exceeds the magnetic core's effective operating range, inductance can drop.
That can cause rapidly increasing current and instability.
Current Capability Is Not Just Copper Current.
Magnetic Saturation Matters.
Core Loss
Magnetic-core loss depends on:
frequency
flux swing
material
temperature
A component with acceptable DCR can still heat substantially from core loss.
Magnetics Must Be Evaluated Under the Real Switching Waveform.
Capacitor Selection
Power capacitors should be selected based on more than nominal capacitance.
Important characteristics include:
voltage rating
ripple current
temperature
aging
100 µF Printed on the Package Does Not Guarantee 100 µF in the Circuit.
MLCC DC Bias
Ceramic capacitor effective capacitance can decrease under applied DC voltage depending on dielectric type and construction.
This is extremely important in power conversion.
A design that expects:
22 µF
may have substantially less effective capacitance in operation.
Use Effective Capacitance — Not Only Nominal Capacitance.
Capacitor RMS Current
Capacitors in switching converters carry ripple current.
Excessive ripple current can increase:
heating
degradation
Power design should therefore consider capacitor current stress.
MOSFET Selection
Switching devices should be evaluated for:
voltage rating
current
gate charge
switching loss
package
thermal behavior
A MOSFET with very low RDS(on) may have larger gate charge.
Lower Conduction Loss Can Increase Switching Loss.
Power design is optimization.
Conduction Loss
Conceptually MOSFET conduction loss includes:
effects.
Therefore high-current designs become particularly sensitive to resistance in:
inductor
connectors
At High Current, Milliohms Become Watts.
Switching Loss
Power is also lost during switching transitions.
Faster switching can reduce transition time.
But extremely fast edges can increase:
ringing
dv/dt-related coupling
The Fastest Switching Edge Is Not Automatically the Best Power Design.
Gate-Drive Considerations
Even in ordinary power-supply design, gate behavior matters in high-current synchronous regulators.
Gate impedance and switching transition influence:
efficiency
ringing
More advanced high-power gate-drive engineering belongs primarily on the next Power Electronics page.
Dead Time
In synchronous converters, high-side and low-side switching devices must not conduct simultaneously.
That would create:
Shoot-Through.
But excessive dead time also increases conduction loss through alternate current paths.
Dead Time Is a Timing Optimization.
Control-Loop Architecture
A regulated converter is a feedback-control system.
Conceptually:
Loop design determines:
stability
transient response
regulation
A Power Supply Is a Control System That Moves Energy.
Loop Stability
A converter can appear to operate normally while possessing poor phase margin.
Changes in:
load
capacitance
temperature
component tolerance
can expose instability.
Engineering may evaluate:
Loop Gain
Crossover Frequency
Phase Margin
Gain Margin
“It Doesn't Oscillate on the Bench” Is Not a Stability Analysis.
Compensation
Control-loop compensation shapes loop gain to achieve appropriate:
bandwidth
phase margin
transient response
Compensation must match:
Power Stage + Output Capacitor + Load + Controller.
Compensation Is Where Power Electronics Meets Control Theory.
Load-Dependent Stability
Some converters behave differently at:
vs
Light Load.
Control mode may change.
For example, the converter may enter:
discontinuous conduction
pulse skipping
low-power mode
This can change:
noise
ripple
transient behavior
Validate Across the Entire Load Range.
Light-Load Operation
Battery products may spend most of their life at low load.
Therefore:
at one current level is not enough.
The power system should consider:
Efficiency Across the Real Load Profile.
Quiescent Current
For long-life battery products, regulator quiescent current can materially affect standby life.
A system sleeping at microamps cannot tolerate a power architecture consuming milliamps while “doing nothing.”
The Power Supply Can Become the Largest Load When the Product Sleeps.
Shutdown Current
Even when disabled, regulators and load switches may consume leakage current.
At multi-year battery targets:
Nanoamps and Microamps Accumulate Into Real Energy.
Efficiency Mapping
A useful efficiency analysis considers:
Vin × Load Current × Operating Mode.
Instead of quoting one:
95% efficiency
value.
A true product efficiency map may show performance across:
input range
output current
temperature
One Efficiency Number Is Usually Not the Product Efficiency.
Conversion Loss Budget
Total conversion losses may include:
Switching Loss
Conduction Loss
Magnetic Loss
Control IC Power
Capacitor Loss
PCB Copper Loss
Every Lost Watt Must Go Somewhere.
Usually into heat.
Thermal Engineering
Power design and thermal design are inseparable.
Heat sources include:
regulator IC
inductor
diode
resistor
connector
The design should estimate:
Efficiency Is Thermal Design Before Thermal Design Begins.
Junction Temperature
Semiconductor performance and reliability depend on junction temperature.
A component can operate below its absolute maximum yet still have insufficient long-term thermal margin.
Maximum Rating Is a Survival Limit — Not a Design Target.
PCB as a Heat Spreader
Copper planes and thermal vias can conduct heat away from power components.
Therefore:
PCB Layout Is Part of the Heat Sink.
This connects electrical, mechanical and manufacturing design.
Thermal Via Engineering
Vias can transfer heat between layers.
But performance depends on:
number
geometry
copper
connection to planes
Thermal architecture should follow actual power dissipation rather than decorative via arrays.
Input-Voltage Range
A supply may experience:
but also:
and
conditions.
The converter should be evaluated at the corners.
For battery systems:
vs.
Nearly Depleted.
For industrial inputs:
appropriate normal variation must be understood.
The Nominal Input Is Only One Operating Point.
Input Transients
External power inputs can experience transient behavior from:
cable connection
load switching
source impedance
Depending on product environment, protection requirements should be defined at system level.
Power Inputs Live in the Real World.
Not in an ideal bench supply.
Input Filtering
Input filters can reduce:
conducted noise entering the converter
switching noise returning toward the source
But filters interact with converter input impedance.
Poorly designed filtering can create instability.
EMI Filters Are Also Circuit Dynamics.
EMI Architecture
Power converters are major EMI sources because of:
and
High dv/dt nodes.
Controlling EMI begins with:
topology
loop area
placement
switching edge
grounding
before adding filters.
The Best EMI Filter Is Often Better Current-Loop Geometry.
Hot Loop Control
In switching converters, a small set of paths can carry the fastest current transitions.
These should be identified and physically minimized.
Minimize the Current Loop That Changes Fastest.
This is one of the most powerful power-layout rules.
Switch-Node Control
The switch node can experience large, rapid voltage transitions.
Its copper area should generally be controlled according to the converter architecture.
Excessive area can increase capacitive coupling.
The Switch Node Is an Electromagnetic Source.
Ground Layout
Power ground carries large pulsed current.
Sensitive feedback ground should not be casually mixed into high-current return paths.
The goal is to control:
Which Current Creates Which Voltage Drop in Which Copper.
Feedback Routing
The regulator feedback node represents the voltage the control system believes it is regulating.
If noise is injected into feedback:
The Converter Regulates the Noise.
Feedback should therefore be treated as a sensitive signal.
Remote Sense
High-current rails may use remote sense to regulate voltage closer to the actual load rather than at the regulator output.
This can compensate for:
PCB Copper Voltage Drop.
Regulate the Voltage Where the Load Uses It.
Not necessarily where the converter creates it.
Kelvin Sensing
Current or voltage feedback may require separate sensing connections to avoid high-current copper drops.
Again:
Separate the Power Path From the Measurement Path When Precision Requires It.
Power-Plane Voltage Drop
PCB copper has resistance.
At high current, voltage drop can become meaningful.
A rail distributed across a board should evaluate:
copper thickness
geometry
current density
via transitions
A 1% Voltage Drop Can Consume a Large Part of a Low-Voltage Rail's Margin.
Current-Density Engineering
High-current PCB structures should avoid:
bottlenecks
narrow neckdowns
excessive via resistance
Current distribution should be evaluated physically.
Copper Is Part of the Power Component Set.
Connector Power Integrity
Connectors have:
contact resistance
current rating
thermal behavior
At high current:
Connector Milliohms Matter.
Connector heating can become a reliability limitation.
Power Integrity — PDN
For high-performance processors, the regulator is only one part of the power path.
The complete PDN is:
The Load Sees the PDN — Not the Regulator Datasheet.
Target Impedance
A useful PI concept is:
Target Impedance.
Conceptually, allowable supply-voltage variation relative to transient current helps define the maximum acceptable PDN impedance.
As rail voltage decreases and current increases:
Allowed PDN Impedance Can Become Extremely Small.
Decoupling Hierarchy
A high-performance rail may use:
for lower-frequency energy.
for faster events.
for the fastest currents.
No Single Capacitor Solves the Entire Frequency Range.
Anti-Resonance
Different capacitors and PCB inductances can interact to create impedance peaks.
Therefore:
does not always mean:
Better PDN.
Decoupling Is Network Design.
Power Rail Noise
Rail noise can influence different systems differently.
May reduce timing margin or cause instability.
May reduce SNR.
May increase jitter or phase noise.
May create spurs/desense.
Power Noise Becomes Whatever Error the Load Is Sensitive To.
Precision Power Measurement
Power-system validation should measure:
rail voltage
current
ripple
startup
transient response
efficiency
temperature
The test setup must have sufficient bandwidth and low measurement-loop inductance.
Bad Measurement Technique Can Create Fake Ripple.
Ripple Measurement Technique
Long oscilloscope probe ground leads can pick up switching fields and exaggerate measured noise.
Professional measurements use appropriately controlled probing methods.
Measure the Rail — Not the Measurement Loop Antenna.
Current Measurement
Current can be measured using:
current probe
shunt measurement
power analyzer
depending on bandwidth and accuracy requirements.
Product power optimization should use measured load profiles.
Efficiency Measurement
Efficiency should be measured using:
vs.
with instrumentation appropriate to the operating conditions.
For low-power products, instrument resolution becomes important.
For high-current products, connection loss can distort results.
Dynamic Load Testing
Electronic loads or controlled product activity can simulate:
idle
full load
pulse loads
This allows repeatable testing of transient response.
Test the Power Supply With the Load Behavior It Was Designed to Support.
Startup Validation
Startup measurement should examine:
Input
Output Rails
PGOOD
Reset
Current
simultaneously where useful.
Questions include:
Does any rail overshoot?
Are sequences correct?
Is current excessive?
Does reset release correctly?
Boot Problems Are Often Power Problems Wearing a Firmware Disguise.
Shutdown Validation
Similarly measure:
rail decay
reverse current
processor state
A system should not enter uncontrolled states as power disappears.
Fault-Injection Testing
Power systems should be deliberately challenged.
Examples include appropriate controlled engineering tests for:
overload
short
input interruption
undervoltage
The goal is to verify designed protective behavior.
Protection Should Be Tested — Not Assumed.
Power Telemetry
Modern power systems can monitor:
voltage
current
temperature
fault status
power
This data may be accessible through digital interfaces.
Telemetry can support:
Debugging
Diagnostics
Energy Management
Predictive Maintenance
The Power System Can Explain Its Own Health.
100 — Digital Power Management
Complex systems may use a management controller to coordinate:
sequencing
monitoring
faults
telemetry
This is especially valuable for:
servers
networking
industrial computing
modular systems
Power Control Becomes Firmware-Assisted Infrastructure.
101 — Rail Fault Logging
A fault record may capture:
Which Rail
Voltage
Current
Temperature
Timestamp
System State
This can dramatically improve root-cause analysis.
A Power Failure Should Leave Evidence.
102 — Energy Monitoring
Connected products can measure energy consumption over time.
This may support:
battery estimation
thermal control
operational analytics
power optimization
You Cannot Optimize Energy You Never Measure.
103 — Battery-Powered Architecture
Battery systems must consider:
Cell Voltage
Load Profile
Conversion Efficiency
Sleep Current
Peak Current
Battery Impedance
Battery-management design receives its own dedicated page later.
The power-supply page should ensure the product power tree can use the battery efficiently.
104 — Battery Runtime Modeling
A simple calculation:
can be misleading.
Real runtime depends on:
conversion efficiency
current profile
battery chemistry
temperature
cutoff voltage
Battery Runtime Is a System Model.
105 — USB-Powered Products
Products powered through USB may need to manage:
input-current limits
negotiated power capability where relevant
downstream conversion
Exact USB-C/USB PD implementation should follow the applicable current specification and certified ecosystem rather than generic assumptions.
Connector Capability and Power Protocol Are Not the Same Thing.
106 — AC/DC Power Interfaces
Some products ultimately receive power from AC mains through internal or external conversion.
Because mains-connected design introduces significant safety and regulatory requirements, its architecture should be developed according to the applicable product category, insulation, safety, EMC and certification requirements.
For 365PCB website positioning, the important message is:
Mains Power Must Be Engineered as a Safety-Critical Energy Boundary.
Specific compliance claims should only be made for verified project capabilities and applicable certifications.
107 — External Adapter vs Internal AC/DC
Can reduce internal product power/safety complexity.
Can improve integration but increases:
electrical design complexity
thermal
certification burden
Power Architecture Can Move Risk Outside or Inside the Product.
108 — Isolation Requirements
Certain products need electrical isolation between:
input/output
communication domains
sensor domains
Isolation requirements depend heavily on intended use and applicable standards.
The next Power Electronics Design page can go deeper into transformer and isolated-converter architectures.
109 — Power-System EMC Pre-Compliance
Before formal EMC testing, the power subsystem can be evaluated for:
conducted noise
radiated noise
switching harmonics
The purpose is to identify dominant sources early.
EMC Debugging Should Begin at the Converter — Not at the Certification Lab.
110 — Temperature Validation
Power-system behavior should be checked across intended temperatures.
Important parameters can change:
regulator current limit
capacitor behavior
magnetics
battery characteristics
The Converter at −20°C and +70°C Is Not Electrically Identical to the Converter at 25°C.
111 — Component Derating
Power components should not normally operate continuously at absolute maximum ratings.
Engineering can apply appropriate margin to:
voltage
current
temperature
according to product reliability requirements.
Rating Is the Boundary.
Margin Is the Design.
112 — Input Capacitor Stress
Input capacitors absorb pulsed current from switching stages.
They should be evaluated for:
voltage
temperature
placement
Input-capacitor placement can also strongly influence EMI.
113 — Output Capacitor Stress
Output capacitors participate directly in:
ripple
transient response
loop stability
Replacing a capacitor with a different technology may alter converter behavior.
A BOM Substitute Can Change the Control Loop.
114 — Power BOM Engineering
Power-supply BOMs deserve special lifecycle control.
Critical parts may include:
controller
magnetics
capacitors
An “equivalent” component must be evaluated electrically.
Same Value Does Not Always Mean Same Dynamic Behavior.
115 — Alternate Component Qualification
Changing:
may change:
saturation
core loss.
Changing:
capacitor
may change:
effective capacitance.
Changing:
may change:
switching behavior
efficiency
EMI.
Power Substitution Requires Engineering Revalidation.
116 — Power Design for Long-Life Products
Industrial and professional electronics may remain in production for many years.
Therefore power architecture should consider:
component lifecycle
second sources
qualification strategy
thermal margin
Power Components Can Become Lifecycle Bottlenecks.
117 — Design for Manufacturing
Power DFM should consider:
large components
thermal pads
inductor placement
copper weight
current paths
soldering
inspection
A Power Circuit Must Be Manufacturable Without Destroying Its Electrical Geometry.
118 — Design for Assembly
Large inductors, power MOSFETs and thermal components may present:
solder-paste
placement
thermal-balance
challenges.
PCB design and SMT process should be coordinated.
119 — Design for Test
A power system should expose enough information for manufacturing verification.
Possible access includes:
rail voltage
current
fault outputs
Production should be able to distinguish:
from
Application Failure.
120 — Production Power Test
Manufacturing tests may verify:
rail voltage
current consumption
startup
basic load operation
High-value products may require more extensive functional power testing.
Test Coverage Should Follow Product Risk.
121 — Power Calibration
Some precision systems may calibrate:
voltage monitor
current monitor
during manufacturing.
This can improve telemetry accuracy without requiring unnecessarily expensive components.
122 — Production Data
Across many units, power data can reveal:
current drift
component variation
assembly problems
For example:
A shift in standby-current distribution may indicate a BOM or process change.
Power Measurements Can Become Manufacturing Intelligence.
123 — Statistical Power Manufacturing
Production engineering can monitor:
Output Voltage
Current Consumption
Efficiency Samples
Temperature
where appropriate.
The goal is:
Repeatable Electrical Infrastructure Across Production.
124 — Power Failure Analysis
A “dead board” can originate from:
input protection
regulator
shorted load
sequencing
solder defect
firmware power control
Failure analysis should therefore follow the power chain.
Power Is Usually the First Place to Look When the Product Appears to Do Nothing.
125 — Intermittent Power Failure
Some of the hardest failures are:
brownout resets
transient droop
thermal shutdown
connector drop
because the board may work perfectly during static bench testing.
Intermittent Failures Require Dynamic Measurement.
126 — Oscilloscope Power Correlation
A powerful debugging setup may monitor:
Rail Voltage
Reset
Load Activity
Fault Signal
simultaneously.
For example:
This transforms:
“firmware randomly resets”
into:
measurable power-system evidence.
127 — Power + SI Co-Design
High-speed interfaces need clean supply rails for:
transceiver
memory
Poor PI can create:
jitter
timing movement
eye closure
Power Integrity Can Become Signal Integrity.
128 — Power + Analog Co-Design
Precision analog can reproduce supply noise as measurement error.
Therefore:
must be coordinated with:
analog bandwidth and PSRR.
Quiet Analog Begins With Intentional Power Architecture.
129 — Power + RF Co-Design
PLL, VCO and radio front ends can convert rail noise into:
phase noise
spurs
desense
RF Power Rails Are Part of RF Design.
130 — Power + Thermal Co-Design
Changing voltage conversion architecture changes:
power loss
heat generation
which changes:
enclosure
airflow
reliability
Power Architecture Is Thermal Architecture.
131 — Power + Mechanical Co-Design
Large:
inductors
capacitors
heatsinks
consume physical volume.
A power supply designed after mechanical layout may no longer fit or cool correctly.
Reserve Power Volume Before the Enclosure Becomes Fixed.
132 — Power Architecture Review
A professional review asks:
Are all rails defined?
Are current peaks understood?
Is sequencing correct?
Is transient margin sufficient?
Are sensitive rails isolated?
Is protection appropriate?
Is efficiency acceptable?
Is thermal margin sufficient?
Review the Power System Before Reviewing Individual Regulators.
133 — Schematic Review
At schematic level verify:
controller configuration
feedback
compensation
protection
sequencing
component stress
The schematic should document assumptions.
134 — Layout Review
For switching power, layout is part of circuit behavior.
Review:
hot loops
switch node
input capacitor
ground
feedback
power copper
thermal path
A Correct Schematic Can Become a Bad Converter Through Bad Layout.
135 — Simulation
Power design can use modeling to evaluate:
operating point
startup
transient response
control stability
Models should be used to understand behavior, not simply generate attractive waveforms.
136 — Worst-Case Analysis
Power systems should be evaluated across combinations of:
Component Tolerance.
A converter should work across the defined operating envelope.
Nominal Power Is Not Production Power.
137 — Monte Carlo / Tolerance Analysis
Where margin is tight, component variation can be evaluated statistically.
Examples include:
feedback resistors
compensation
capacitors
The objective is to understand:
How much production variation can the architecture tolerate?
138 — Power Prototype Bring-Up
Bring-up should be staged.
Prove Power Before Connecting the Most Expensive Load.
139 — Current-Limited Initial Bring-Up
During professional bench bring-up, controlled laboratory methods can reduce risk to prototype hardware.
For website copy, we should keep the message at the engineering-practice level:
The First Power-Up Should Be Controlled, Measured and Observable.
Not a blind full-system startup.
140 — Rail-by-Rail Validation
Each rail should be checked for:
voltage
startup
ripple
current
before full integration.
This allows isolation of problems.
141 — EVT Power Validation
EVT should answer:
Do all rails operate?
Is sequencing correct?
Are transient loads supported?
Is noise acceptable?
Are temperatures reasonable?
Does protection work?
EVT Is Where the Power Tree Must Prove It Can Support the Product.
142 — DVT Power Validation
DVT expands testing across:
input range
load range
temperature
final enclosure
real firmware
real radios
real interfaces
The question becomes:
Does the Power System Maintain Margin in the Complete Product?
143 — PVT Power Validation
PVT shifts toward production repeatability:
component variation
assembly
current distribution
thermal behavior
production test
A Good Power Architecture Must Survive Factory Variation.
144 — Power Margin Testing
A robust product should understand how close it is to its limits.
Useful questions include:
How much load increase is still tolerated?
How much input reduction?
How much thermal rise?
Margin Is the Difference Between a Demo and a Production Platform.
145 — What Does World-Class Power Supply Design Look Like?
At the highest level:
That is the difference between:
and
Engineering Product Power.
Depending on project scope, a 365PCB ODM power program may include:
Power Requirements Specification
System Power Budget
Operating-Mode Power Budget
Peak-Current Analysis
Power-Tree Architecture
Input-Power Architecture
Buck Converter Design
Boost Converter Design
Buck-Boost Converter Design
LDO Architecture
PMIC Architecture
Point-of-Load Architecture
Processor / FPGA Power Architecture
Analog Power Architecture
RF Power Architecture
Sensor Power Architecture
Power Sequencing
Shutdown Sequencing
Reset Architecture
Supervisor Architecture
PGOOD Architecture
Brownout Strategy
UVLO Strategy
Overvoltage Protection
Overcurrent Protection
Short-Circuit Strategy
Reverse-Polarity Protection
Reverse-Current Control
Power ORing
Ideal-Diode Architecture
Redundant-Power Architecture
Hot-Swap Architecture
Inrush Analysis
Soft-Start Design
Load-Transient Analysis
Ripple / Noise Analysis
Switching-Frequency Selection
Frequency-Planning Inputs
Inductor Selection
Capacitor Selection
MOSFET Selection
Component Stress Analysis
Control-Loop Analysis
Compensation Design
Stability Analysis
Efficiency Analysis
Quiescent-Current Analysis
Battery-Power Inputs
Power-Telemetry Architecture
Current / Voltage Monitoring
Thermal Analysis Inputs
EMI Architecture
Input-Filter Design
PCB Power Layout Constraints
Hot-Loop Definition
Switch-Node Constraints
Feedback Routing Constraints
Power Copper / Via Requirements
Remote-Sense Architecture
PDN Requirements
Target-Impedance Analysis Inputs
Decoupling Strategy
Power Simulation
Worst-Case / Tolerance Analysis
Prototype Bring-Up Plan
Load-Step Test Plan
Startup / Shutdown Test Plan
Fault-Test Plan
Efficiency Test Plan
Thermal Validation Plan
EMC Pre-Compliance Inputs
EVT Power Validation
DVT Power Validation
PVT Manufacturing Inputs
Production Power-Test Plan
Component Alternate Qualification
Power Component Lifecycle Review
Power Release Documentation
The exact engineering depth should always follow:
Input Environment + Number of Rails + Load Dynamics + Noise Sensitivity + Current + Thermal Limits + Reliability + Product Risk.
Power-supply performance is product-specific. Achievable efficiency, ripple, transient response, output accuracy, noise, thermal performance and power density depend on the input source, load profile, converter topology, semiconductor selection, magnetics, passive components, PCB geometry, thermal environment and control strategy.
We Don't Select a Power Supply From the Average Current Alone.
We Design Around the Complete Load Profile.
A Rail That Is Stable at DC Can Still Fail During a 10-Microsecond Load Event.
You can begin with:
Input Voltage
Output Rails
Processor / FPGA
Peak Current
Battery
Power Budget
Existing Schematic
Existing PCB
Power Noise Problem
Random Reset Problem
Thermal Problem
EMC Problem
or simply:
Tell Us What the Product Must Power — and How the Load Changes Over Time.
365PCB can help translate:
Don't Just Generate the Voltage.
Engineer the Power Tree.
Understand the Load Profile.
Control the Startup.
Design the Transient Margin.
Stabilize the Control Loop.
Minimize the Hot Loops.
Control the Noise.
Protect the Load.
Measure the Dynamic Response.
Engineer the Thermal Path.
Make the Power System Observable.
Make It Repeatable in Production.
365PCB Power Supply Design connects:
Power Architecture + Analog Control + PCB + PI + EMC + Thermal + Firmware + Manufacturing
into one coordinated product-development process.
Power Is Not a Support Circuit.
Power Is the Electrical Infrastructure of the Product.
[Discuss Your Power Architecture]
[Submit Your Power Supply Design]
[Request a Power Engineering Review]
English
