Probe Card PCB

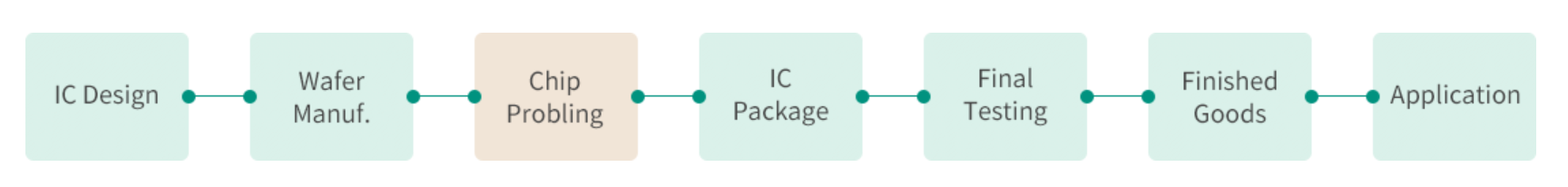

The Probe Card PCB is a high-precision interconnect component designed for wafer-level Circuit Probing (CP) in semiconductor manufacturing. It serves as the critical interface between the Automated Test Equipment (ATE) and the individual die on the wafer, enabling electrical validation and performance screening before the costly packaging process. By identifying defective dies early, it significantly reduces waste and ensures only known-good-die (KGD) proceed to packaging and assembly.

Core Features & Advantages

High-Density & Precision Interconnect:
Engineered with ultra-fine pitch capabilities and precision alignment features to reliably contact the microscopic pads of modern, high-pin-count semiconductor dies.
Superior Signal Integrity & Bandwidth:
Designed with controlled impedance, minimized crosstalk, and optimized signal paths to ensure accurate measurement of high-speed digital, analog, and RF signals during wafer test.
Platform Compatibility & Flexibility:
Compatible with major probe systems and ATE platforms. Configurations include vertical, MEMS, and cantilever probe card interfaces to suit various device technologies and pad layouts.
Enhanced Durability & Stability:
Built to withstand the mechanical rigors of repeated probing cycles and maintain stable electrical performance over extended use in production environments.
Critical for Cost Savings:
Enables early fault detection at the wafer level, preventing the significant expense of packaging defective chips and directly improving overall production yield.

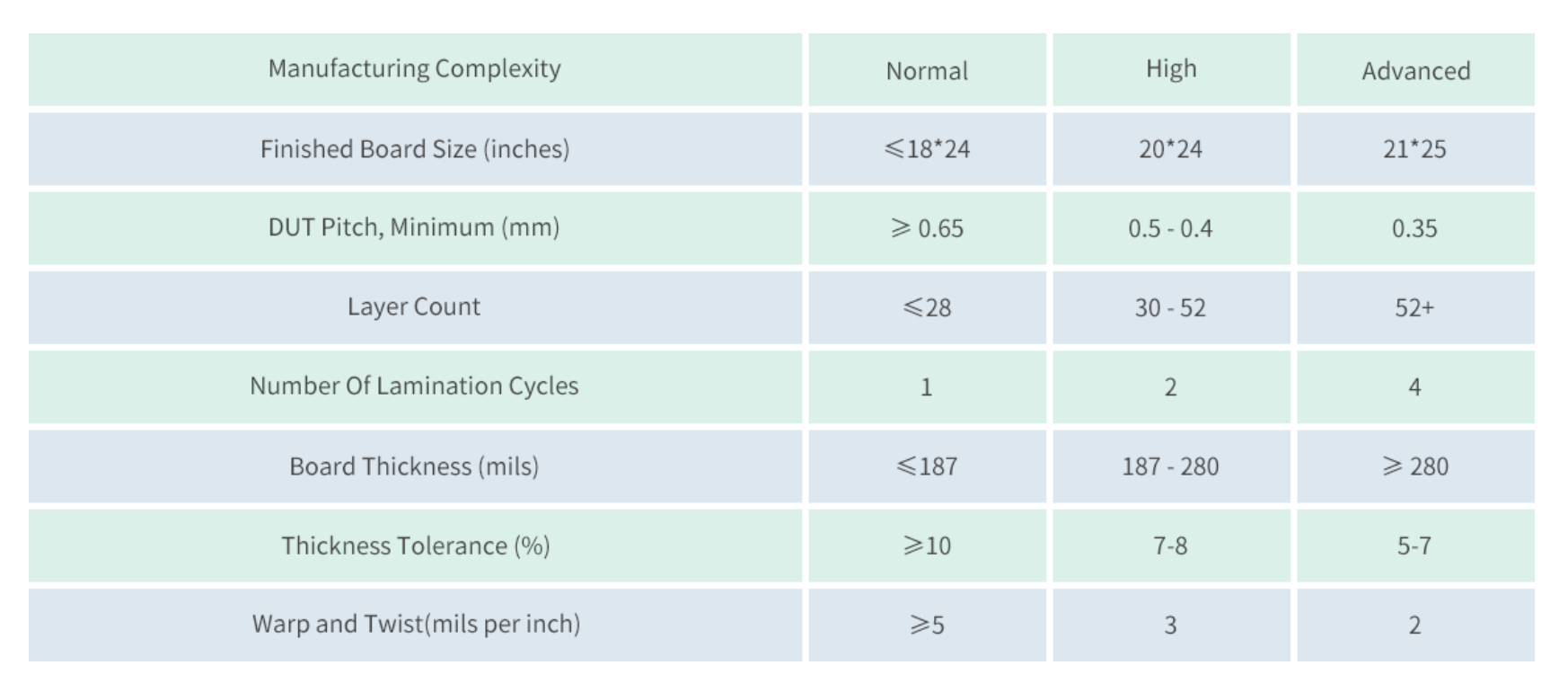

Typical Specifications & Capabilities

Substrate Materials: High-performance laminates (e.g., ceramics, advanced composites, high-frequency laminates).
Layer Architecture: Multilayer designs supporting complex routing and integrated passive components.
Probe Interface: Supports epoxy ring, space transformer, and direct attach methodologies for various probe types (e.g., vertical, MEMS).
Electrical Performance: High-bandwidth design for multi-GHz testing, low-noise power delivery networks (PDN).
ATE Compatibility: Designed for integration with systems from leading ATE vendors.

Primary Applications

Wafer Sort / Circuit Probe (CP) Testing: Electrical testing and binning of individual dies on a semiconductor wafer.
Engineering Characterization: Performance validation and failure analysis during chip development.
Known-Good-Die (KGD) Assurance: Screening to ensure only functional dies are sent for advanced packaging (e.g., 2.5D/3D IC, SiP).
