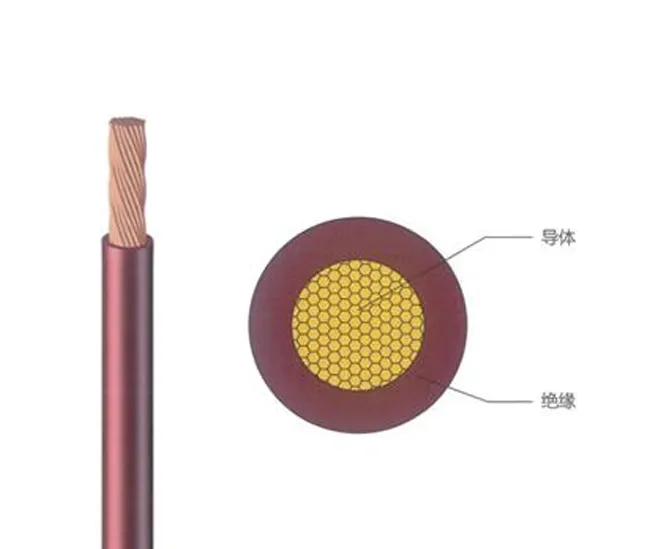

FLR9Y Low-Voltage Wires with Polypropylene Insulation

Compliant with ISO 6722 Class C, ideal for internal wiring of road vehicles with a nominal system voltage ≤60V DC (or 25V AC). Suitable for installation near high-heat sources (without direct exposure to wire harnesses), under the hood between the engine and baffle, and at least 20cm away from exhaust pipes. Constructed with stranded tinned or bare copper conductors and polypropylene or similar composite insulation, it ensures reliable conductivity and stable performance, meeting the rigorous requirements of automotive low-voltage wiring systems.

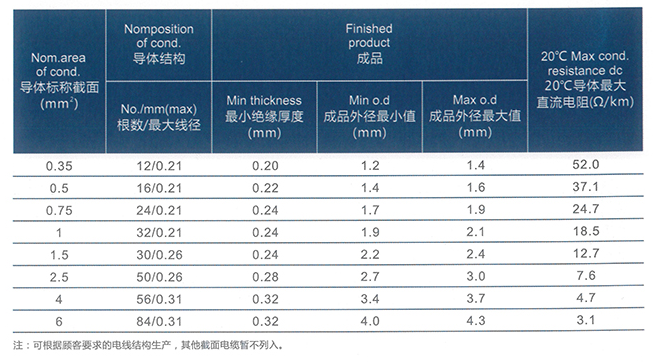

Details of China 365PCB FLR9Y Low-Voltage Wires with Polypropylene Insulation

The FLR9Y series represents a specialized class of low-voltage, thin-wall insulated wires designed for reliability and efficiency in compact spaces. Utilizing premium Polypropylene (PP) insulation, these wires offer excellent electrical properties, heat resistance, and weight savings, making them an ideal choice for modern vehicle electrical systems and precision industrial equipment where space optimization and performance are critical.

Key Features & Benefits:

Advanced Polypropylene Insulation: Provides outstanding dielectric strength, low dielectric constant, and excellent resistance to heat aging, ensuring long-term stability and reliability.
Thin-Wall Design: Reduces overall wire diameter and bundle size, facilitating easier routing in space-constrained environments and contributing to overall weight reduction—a crucial factor in automotive design.
High-Temperature Resistance: Rated for continuous operation at 105°C, suitable for high ambient temperature areas within engine compartments or industrial control panels.
Excellent Chemical & Abrasion Resistance: The PP insulation material demonstrates good resistance to common oils, fuels, acids, and alkalis, while offering robust protection against mechanical wear.
Lightweight & Flexible: Enhances installation efficiency and is perfect for complex wiring harnesses requiring repeated bending or movement.
Compliance with Key Standards: Manufactured to meet the specifications of JASO D 611 (Japanese Automobile Standard) for FLR9Y type wires, ensuring quality and interoperability for targeted applications.

Primary Applications:

Automotive Wiring Harnesses: Internal wiring for body electronics, dashboard instruments, lighting, sensors, and other low-voltage circuits in passenger cars and commercial vehicles.
Industrial Control Panels & Machinery: Internal wiring for PLCs, sensors, actuators, and low-power control circuits where reliable insulation and space savings are needed.
Consumer Appliances & Electronics: Internal connections in devices requiring stable, heat-resistant wiring.
Other applications requiring lightweight, reliable, and compact low-voltage wiring solutions.
