Start With System Architecture
Before placing symbols, the product should be divided into functional subsystems.
For example:
Each subsystem should have:
defined function
inputs
outputs
power
interfaces
requirements
fault behavior
First Define the Product.
Then Draw the Circuit.
Functional Block Diagram
One of the strongest early documents is:
The Functional Block Diagram.
It converts product requirements into an engineering map.
For example:
while:
feed the same blocks.
This exposes interfaces before component detail obscures the architecture.
If the System Block Diagram Is Confusing, the Schematic Will Usually Become More Confusing.
Electrical Architecture
The architecture should identify:
Power Domains
Clock Domains
Reset Domains
Voltage Domains
Communication Domains
Analog Domains
RF Domains
Isolation Domains
Security Domains
These boundaries become extremely important later during PCB layout.
Electrical Boundaries Should Exist Before Copper Boundaries.
Hierarchical Schematic Architecture
A complex schematic should not be one enormous page.
It should have an intentional hierarchy.
Example:
Sheet 01
System Overview
Sheet 02
Power Input
Sheet 03
Power Tree
Sheet 04
Processor
Sheet 05
Memory
Sheet 06
High-Speed Interfaces
Sheet 07
Analog / Sensors
Sheet 08
Wireless / RF
Sheet 09
External I/O
Sheet 10
Programming / Debug
Schematic Structure Should Reflect System Structure.
Top-Level System Sheet
The top sheet should answer:
What is this product electrically?
It can show:
and their principal interconnections.
A senior engineer should be able to open the design and understand the electrical product architecture quickly.
A Good Schematic Can Be Read at Several Levels of Detail.
Functional Flow
A schematic should generally make signal flow understandable.
For example:
or:
Random placement may remain electrically correct but becomes much harder to review.
Readability Is an Engineering-Control Mechanism.
Because engineers cannot review what they cannot understand.
Signal Direction
Where practical:
and:
can improve readability.
But the principle matters more than rigid graphic convention.
Draw the Circuit So Its Function Can Be Understood.
Schematic Symbol Standards
Symbols should communicate function consistently.
IEC's current IEC 60617:2026 DB is the official IEC database for graphical symbols used in electrotechnical diagrams and contains more than 1,500 standardized symbols across conductors, passives, semiconductors, power conversion, communications and other domains.
A professional symbol library should therefore prioritize:
over decorative appearance.
A Symbol Is an Engineering Interface to the Component.
Symbol Quality
A schematic symbol should correctly represent:
pin number
pin name
electrical type
functional grouping
Errors here can propagate directly into PCB layout.
A Wrong Symbol Can Create a Correctly Routed Wrong PCB.
That is why library quality is foundational.
Component Library Governance
A serious ODM organization should not allow uncontrolled component libraries.
Every approved component definition should ideally connect:
Manufacturer
MPN
Symbol
Footprint
Parameters
Lifecycle Information
Datasheet
and when relevant:
3D / Mechanical Data.
Library Integrity Is Design Integrity.
Symbol-to-Footprint Verification
A common source of PCB errors is:
Correct component, wrong footprint.
Verification should confirm:
Pin 1 ↔ Pad 1
Pin Names ↔ Pad Numbers
Package Variant
Pitch
Body Dimensions
Thermal Pad
Polarity.
The Schematic and PCB Must Describe the Same Physical Component.
Alternate Package Risk
One semiconductor may exist as:
with completely different pin assignments.
Part number suffixes matter.
Similar Product Name Does Not Mean Identical Physical Device.
Thermal Pad Definition
QFN and similar packages may include exposed thermal/electrical pads.
The schematic library should clearly define whether that pad is:
ground
power
thermal only
electrically required
Hidden Pads Should Never Become Hidden Requirements.
Multi-Part Symbols
Large devices such as:
may be divided into symbol units.
For example:
Power
GPIO Bank A
GPIO Bank B
Memory Interfaces
High-Speed Transceivers
This improves readability.
But all units must remain linked to the same physical device.
Divide the Symbol Without Dividing the Component Identity.
Requirements Traceability
Important schematic decisions should trace back to requirements.
For example:
Every Important Circuit Should Have a Reason to Exist.
Circuit Requirement Allocation
System requirements should be allocated to electrical circuits.
For example:
±10 V analog input
may create requirements for:
Input Protection
Attenuation
AFE
ADC Range
Accuracy
Isolation
depending on product.
Product Requirements Should Become Circuit Requirements.
Design Assumptions
Engineering assumptions should not exist only in someone's memory.
Examples:
Important assumptions should be documented.
Hidden Assumptions Become Future Design Errors.
Component Selection Before Schematic Capture
Schematic development depends on good component engineering.
The engineer should already understand:
availability
electrical specification
package
lifecycle
cost
alternatives
before deeply embedding the part into architecture.
Every Schematic Component Is Also a Supply-Chain Decision.
Processor Architecture
The MCU/MPU/SoC section should define:
Power
Clock
Reset
Boot
Memory
Debug
Interfaces
GPIO
Security
not simply connect the processor pins.
A Processor Schematic Is a Platform Architecture.
Pin Planning
For high-pin-count devices:
Pin Assignment Is System Architecture.
Pins may have constraints involving:
alternate functions
voltage banks
boot functions
analog functions
high-speed channels
memory routing
clock inputs
Poor pin assignment can make PCB routing unnecessarily difficult or impossible.
Pin Planning With PCB Escape in Mind
Especially for:
the schematic engineer should consider how signals physically escape the package.
For example:
placing an interface's logical pins across physically distant BGA regions may create routing complexity.
Logical Convenience Should Not Create Physical Impossibility.
FPGA Bank Planning
FPGA I/O belongs to physical banks with voltage and resource constraints.
A good schematic design coordinates:
I/O Standard
Bank Voltage
Pin Location
Clock-Capable Pins
Transceiver Banks
DDR Interfaces
with PCB feasibility.
FPGA Pin Planning Is PCB Planning Before Layout.
MCU Alternate-Function Conflicts
An MCU pin may support several functions:
But functions can conflict.
A pin assignment should consider the entire peripheral map.
“The MCU Supports It” Does Not Mean All Supported Functions Can Be Used Simultaneously.
Boot-Strap Pins
Some IC pins determine startup mode.
Possible states may define:
boot source
configuration
address
operating mode
The schematic should ensure those pins have defined states.
A Floating Boot Pin Can Turn Manufacturing Variation Into Boot Behavior.
Strapping Resistors
Configuration straps should be designed with understanding of:
internal pulls
sampling time
external drivers
The circuit should not create conflicting states during boot.
Reset Architecture
Reset should be designed intentionally.
Potential sources include:
Power Supervisor
Watchdog
Debug
External Reset
System Controller.
Reset Is a System Control Signal.
Not merely an MCU pin connected to a button.
Reset Domain Analysis
Different devices may require different reset behavior.
For example:
Processor
Ethernet PHY
FPGA
Wireless Module
may need coordinated release.
The System Can Be Powered Correctly and Still Boot Incorrectly Because Reset Was Wrong.
Clock Architecture
The schematic should define every important clock source.
Examples:
Crystal
Oscillator
TCXO
Clock Generator
PLL Reference.
For each clock:
frequency
accuracy
jitter
load
distribution
should be understood.
Time Is an Electrical Infrastructure.
Crystal Circuit
Crystal oscillator circuits can be sensitive to:
load capacitance
drive level
placement
The reference design should be interpreted rather than blindly copied.
The Crystal Datasheet and MCU Oscillator Circuit Form One Oscillator System.
Clock Distribution
One source may feed several devices.
This creates questions about:
fan-out
termination
skew
jitter
A Clock Net Is Not Just Another Digital Net.
Clock Jitter Budget
High-speed interfaces, ADCs, DACs and RF systems can be limited by clock quality.
The schematic therefore needs to preserve the clock from:
noisy power
inappropriate buffering
poor return paths
The Clock Carries Timing Margin.
Power Tree Definition
The schematic should make the entire power architecture obvious.
Example:
24 V
5 V
3.3 V
1.8 V
1.0 V.
Each rail should clearly identify:
source
load
current
sequencing
monitoring
Power Rails Should Have Ownership.
Power Domains
The product may need separate domains such as:
Digital 3V3
Analog 3V3
RF 3V3
Motor Power
Always-On Power
Switched Power.
But different names should represent intentional electrical architecture—not cosmetic net labels.
Different Net Names Do Not Automatically Create Electrical Isolation.
Power Sequencing
If a component requires power rails in a defined order, the schematic should implement that behavior.
Possible mechanisms include:
enable chains
sequencer
Sequencing Requirements Belong in the Schematic.
Not only in firmware documentation.
Power-Good Architecture
PGOOD can be used by:
reset
system supervisor
to verify rail state.
The Product Should Know Whether Its Power Is Valid.
Power Gating
Unused subsystems may be switched off for energy savings.
Power gating introduces additional requirements:
load switch
enable logic
discharge
interface isolation
Turning Off One Domain Can Create Back-Powering Through Another Domain.
Back-Powering Analysis
Suppose device A is powered down while device B still drives a signal into it.
Current may flow through internal protection structures.
This can create:
unintended powering
undefined behavior
Power-Off Is an Electrical State That Must Be Designed.
Decoupling Architecture
Every IC power pin should have an intentional decoupling strategy.
But the schematic should differentiate:
local high-frequency decoupling
from
bulk energy storage.
Decoupling Is Part of the PDN.
Decoupling by Domain
A complex processor can have different rails:
Each may need different power treatment.
One IC Can Contain Several Different Electrical Environments.
Sensitive PLL Supply
Processor or transceiver PLL rails may require additional filtering.
Noise there can become:
jitter
phase noise
Power Quality Becomes Timing Quality.
Power Rail Testability
Important rails should be measurable.
Consider:
test points
current measurement options
isolation links
If You Cannot Measure the Rail, Power Debug Becomes Guesswork.
Memory Architecture
Memory design includes more than connecting buses.
The schematic should define:
Memory Type
Width
Capacity
Voltage
Termination
Reference
Topology
and:
Layout Relationships.
DDR Schematic Design
DDR interfaces involve:
data groups
strobes
address/command
clock
reference
termination
The schematic should already communicate grouping and constraint intent.
High-Speed Memory Layout Starts in the Schematic.
Byte-Lane Grouping
Data signals belonging to a byte lane should remain logically grouped.
This assists:
layout
review
length matching
Organize Signals According to How They Must Route.
Termination Architecture
High-speed buses may require:
or architecture-specific termination.
Termination should be based on:
interface
topology
signal integrity
Termination Is Channel Engineering.
Not a habit.
Memory Reference Signals
Certain memory technologies use reference voltages or reference signals.
These should receive appropriate analog-quality treatment.
Digital Memory Can Contain Analog Reference Requirements.
Nonvolatile Memory
EEPROM, NOR, NAND, eMMC or other storage may contain:
boot code
firmware
configuration
calibration
The schematic should reflect the product's data architecture.
Storage Is Part of Boot, Security and Manufacturing.
Programming Memory in Manufacturing
If memory must be pre-programmed:
interface
test access
programming workflow
should be considered before layout.
Production Programming Begins at Circuit Architecture.
High-Speed Interface Architecture
Interfaces may include:
PCIe
USB
Ethernet
MIPI
DisplayPort
and others.
The schematic should capture:
lanes
polarity
coupling
reference clocks
resets
power
sideband signals
A High-Speed Interface Is a Channel — Not Two Nets With +/- Signs.
Differential Pair Definition
Each pair should be clearly defined as a related electrical structure.
The layout engineer should know:
impedance target
pair relationship
allowed polarity behavior where protocol permits
critical constraints
Differential Intent Should Survive the Schematic-to-PCB Handoff.
AC Coupling
Certain SerDes links use AC coupling.
Correct design needs to know:
which side owns capacitors
value
location considerations
standard requirements
Two Ends Must Not Both Assume the Other End Added the Capacitors.
High-Speed Lane Mapping
Lane reversal or polarity inversion may be allowed on some protocols and prohibited or constrained on others.
This should be verified against the actual device and protocol.
Never Exchange Routing Convenience for Protocol Assumptions.
Reference Clock Architecture
Some high-speed systems use:
common clocks
independent clocks
recovered clocks
The schematic must match the actual interface architecture.
Sideband Signals
High-speed interfaces often include slower control signals.
Examples can involve:
reset
wake
enable
presence
management buses
The Link Can Fail Even When the High-Speed Lanes Are Perfect if Sideband Architecture Is Wrong.
Ethernet Architecture
Ethernet circuitry may include:
Each boundary has electrical and layout implications.
Ethernet Is Digital Logic Connected Through an Analog Transmission Interface.
PHY Configuration
Ethernet PHYs frequently use strap/configuration pins.
The schematic should coordinate:
boot configuration
management interface
without creating signal conflicts.
Ethernet Magnetics
Isolation magnetics and termination should be implemented according to:
connector
applicable interface requirements
The PCB layout later must preserve the channel.
Magnetics Are Part of the Ethernet Analog Front End.
USB Architecture
USB design should define:
connector type
data interface
role
power behavior
protection
For USB-C systems, configuration and power behavior must be engineered intentionally rather than treating the connector as “another USB connector.”
Connector Shape Does Not Define Protocol Behavior.
USB-C Architecture
Depending on product requirements, USB-C may involve:
orientation
role negotiation
power delivery
high-speed multiplexing
USB-C Is a Connection Architecture.
Not only a mechanical receptacle.
CAN / CAN FD
A CAN interface generally includes:
Connector / Bus.
The schematic should consider:
termination
standby
fault behavior
Protocol Logic and Physical Layer Are Different Design Layers.
RS-485 / RS-422
Longer wired interfaces require attention to:
termination
biasing
transceiver enable
common-mode range
protection
Cable Interfaces Live Outside the PCB's Controlled Environment.
UART / SPI / I²C
Even apparently simple interfaces need correct:
voltage level
pull-ups
drive capability
bus loading
I²C in particular depends on:
bus capacitance + pull-up resistance.
“Low-Speed” Does Not Mean “No Electrical Design.”
Level Translation
When devices use different I/O voltages, translators may be required.
Selection depends on:
directionality
speed
signaling type
power state
Logic-Level Translation Must Match Signal Behavior.
Open-Drain Signals
Open-drain buses require pull-up networks.
The pull-up value affects:
rise time
current
Pull-Ups Are Analog Components in a Digital Interface.
External Connector Architecture
Every external connector is a boundary between:
and
An Uncontrolled External Environment.
Therefore it deserves additional analysis.
Connector Pin Planning
Connector pinout should consider:
signal grouping
return conductors
current
mechanical orientation
serviceability
High-speed interfaces may need intentional signal/ground arrangement.
Connector Pinout Is Signal Integrity and User Interface at the Same Time.
Ground Pins in Connectors
High-speed or noisy connections may benefit from nearby return pins.
A connector carrying many fast signals but very few return paths can create poor electromagnetic behavior.
Every Signal Needs a Return Path Across the Connector Too.
Connector Current Capability
Power pins should be evaluated for:
steady current
transient current
contact resistance
Connector Ratings Are Part of Power Architecture.
External ESD Protection
External interfaces may need protection against electrostatic events.
Protection selection should consider:
working voltage
capacitance
clamping
interface speed.
Protection Must Protect the Interface Without Destroying Its Signal Integrity.
TVS Selection
A TVS device should not be selected only from:
nominal voltage.
The engineer should consider:
operating voltage
transient behavior
capacitance
package
Protection Devices Are Electrical Components During Normal Operation Too.
Surge / Transient Protection
Certain industrial interfaces may require stronger transient protection.
The architecture may include:
series impedance
filtering
isolation
depending on the application.
Protection Architecture Should Follow the Environment.
Current-Limiting Protection
External outputs may need controlled short-circuit behavior.
A load switch or protected driver can provide:
current limit
fault status
Protection Is Stronger When the System Can Diagnose What Happened.
Reverse Connection
External power/connectors may be incorrectly connected.
Where product requirements justify it, schematic architecture should consider:
reverse polarity
wrong voltage
hot plug
Real Customers Do Not Operate Products Like Ideal Test Equipment.
Isolation Architecture
Some circuits require galvanic isolation.
Possible boundaries include:
Industrial I/O.
The schematic should clearly mark:
The Isolation Barrier.
Isolation Barrier Integrity
Every connection crossing the barrier must be intentional.
Examples:
isolated data
transformer
isolated power
Unintended paths can defeat isolation.
One Forgotten Ground Connection Can Destroy an Entire Isolation Architecture.
Creepage / Clearance Inputs
Physical creepage and clearance are finalized in PCB design, but the schematic must identify which nets belong to:
hazardous/high-potential side
safe/isolated side
Safety Geometry Begins With Correct Net Classification.
Analog Architecture
Precision analog sections should be drawn according to:
Signal Flow.
Example:
ADC.
Analog Schematics Should Tell the Signal's Story.
Analog Grounding Intent
Instead of blindly separating “AGND” and “DGND,” the design should understand:
Which Current Must Not Share Which Path?
Ground architecture must eventually be resolved with PCB return-current physics.
Net Names Do Not Control Current.
Geometry does.
ADC Architecture
ADC schematic design can include:
analog input
driver
reference
clock
supply
digital interface
ADC Performance Depends on Everything Around the ADC.
ADC Reference
The reference may set the conversion scale.
Its noise, impedance and loading matter.
ADC Accuracy Cannot Exceed the Quality of Its Reference Architecture.
ADC Driver
High-performance ADCs may require a specific source impedance or driver.
The schematic should respect:
settling
bandwidth
common mode
anti-alias filter
An ADC Pin Is Not Always a High-Impedance Voltmeter Input.
DAC Architecture
DAC outputs may require:
filtering
buffering
amplification
The schematic should define:
What Analog Signal the Product Actually Needs.
Not only the converter code.
Precision Amplifiers
Op-amp selection should consider:
offset
noise
bandwidth
common mode
output swing
bias current
“Rail-to-Rail” Is Not a Complete Precision Specification.
Instrumentation Amplifier
Small differential sensors may require:
high CMRR
low offset
controlled gain
The schematic should preserve differential symmetry.
Sensor Excitation
Sensors such as:
bridge
strain gauge
may require controlled excitation.
Excitation Is Part of the Measurement Architecture.
Sensor Fault Detection
Where required, the schematic can support detection of:
open sensor
short sensor
out-of-range
A Measurement System Should Know When It Is No Longer Measuring Reality.

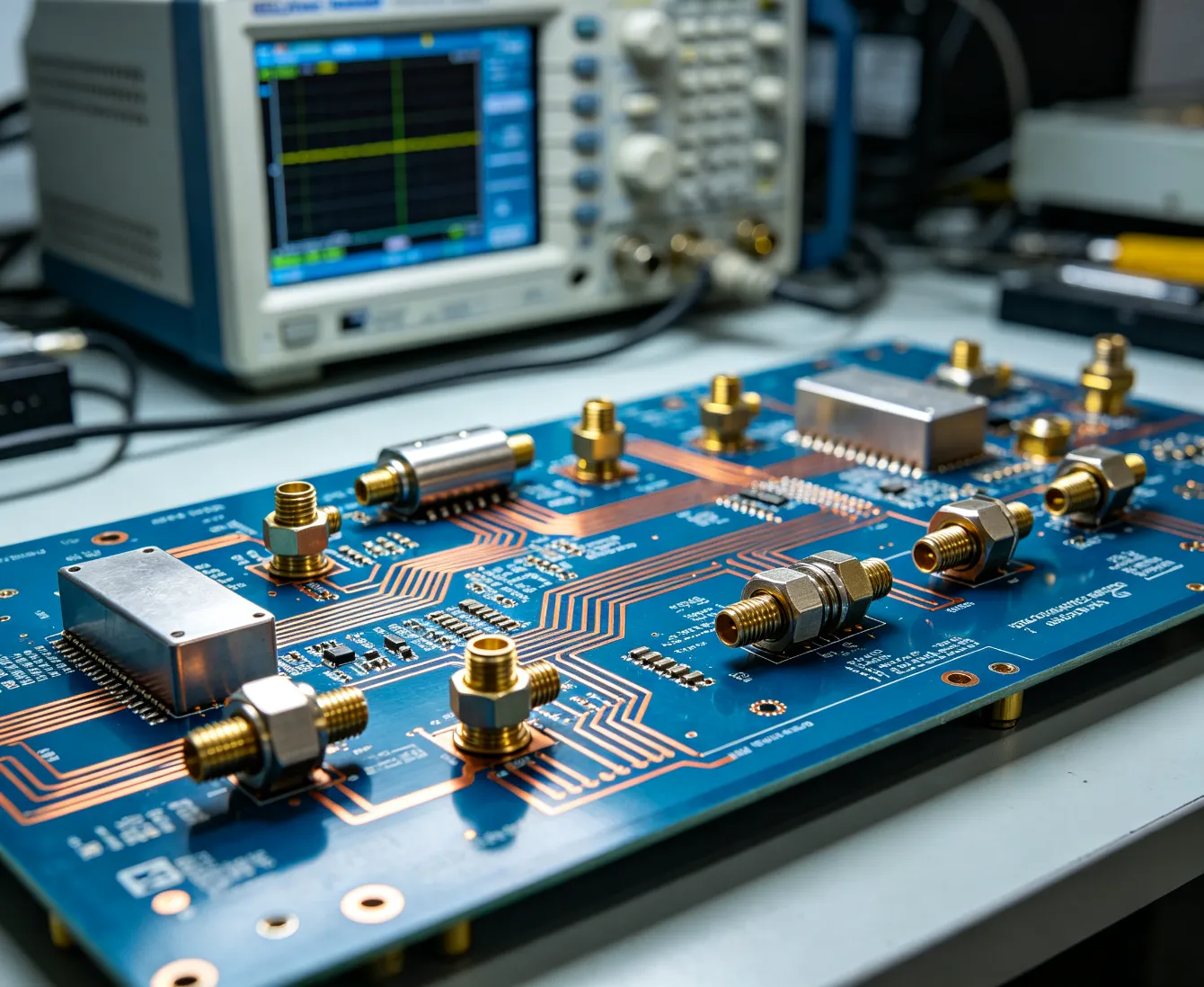

RF Schematic Architecture
RF circuitry should preserve recognizable signal-chain structure.
For example:
Transceiver.
RF Schematic Flow Should Follow RF Energy Flow.
RF Matching Provision
Prototype RF designs may reserve tuning components.
For example:
according to the architecture.
Leave Controlled Adjustment Where Measurement Will Decide the Final Value.
RF Power Domains
RF supplies may require:
filtering
separate regulation
The schematic should clearly identify sensitive rails.
A PLL Rail Should Not Look Like an Ordinary Logic Rail.
Antenna Feed Definition
The schematic should identify:
matching network
antenna interface
test access
without pretending that the schematic determines antenna performance.
The ANT Symbol Is Where Electromagnetic Engineering Begins — Not Ends.
Motor-Control Schematic
A motor-control design connects:
with feedback:
Temperature.
The schematic must represent both:
and
Control Flow.
Gate Driver Section
Gate-driver design should clearly show:
supply
logic inputs
gate paths
fault outputs
High-current switching architecture should remain understandable during review.
Current-Sense Section
Motor or power current sensing should identify:
shunt/sensor
amplifier
filtering
The Schematic Should Make the Measurement Reference Point Obvious.
BMS Schematic Architecture
BMS schematics may be organized into:
Cell Inputs
Cell Monitoring
Temperature
Current
Communication
Controller
Power Control
Isolation.
BMS Schematic Organization Should Follow the Battery Architecture.
High-Voltage / Low-Voltage Separation
Where applicable, high-potential circuits and low-voltage logic should be clearly distinguished visually and electrically.
This reduces review ambiguity.
Safety Boundaries Should Be Visible on the Schematic.
Security Hardware
A secure product may contain:
secure element
trusted memory
protected debug architecture
The schematic should define:
who trusts whom.
Cybersecurity Has Hardware Connections.
Secure Boot Inputs
Boot-mode pins, trusted storage and processor interfaces need correct configuration.
Secure Software Cannot Repair Incorrect Hardware Boot Architecture.
Debug Architecture
Engineering teams need debug access.
Possible interfaces include:
depending on platform.
But production/security needs may later require controlled access.
Debug Must Be Easy During Development and Controlled During Production.
Programming Header
Programming connectivity should be considered before PCB layout.
Questions include:
connector?
pads?
fixture?
test-point interface?
Programming Is a Manufacturing Requirement.
100 — Programming Without Permanent Connector
High-volume products may not need a permanent programming connector.
Test pads can potentially interface to a production fixture.
Development Access and Production Access Do Not Need the Same Mechanical Form.
101 — Test Points
Test points should not be added randomly after layout.
The schematic can identify important:
power rails
buses
analog nodes
reset
programming signals
Testability Begins Before PCB Placement.
102 — Design for Test — DFT
A test strategy might require:
programming
boundary scan
functional test
The schematic should support the intended test philosophy.
You Cannot Test a Node the Product Architecture Makes Inaccessible.
103 — Boundary Scan
Large digital devices may support boundary-scan/JTAG infrastructure.
If intended for manufacturing test, the complete chain should be deliberately designed.
Test Architecture Is Part of Product Architecture.
104 — Factory Mode
Products may contain a controlled production-test mode.
This can expose:
sensors
communications
outputs
to automated equipment.
Manufacturing Firmware and Schematic Test Access Should Be Designed Together.
105 — Fixture Interfaces
Dedicated test pads or connectors may be needed for production fixtures.
Their electrical behavior and physical accessibility should be anticipated.
106 — LED Diagnostics
LEDs can help prototype and production debugging.
But LEDs:
consume power
occupy GPIO
can alter signals if poorly attached
Debug Indicators Should Be Intentional Instrumentation.
107 — Measurement Jumpers
Zero-ohm resistors or removable links can sometimes enable:
current measurement
subsystem isolation
during development.
Design the Board So Engineers Can Ask It Questions.
108 — Reference Design Use
Semiconductor vendors provide valuable reference schematics.
They should be used as:
Engineering Inputs.
Not as:
Copy-and-Paste Authority.
Because the final product may differ in:
power
interfaces
environment
cost
Reference Designs Show One Working Context.
ODM Engineering Must Build the Product's Context.
109 — Datasheet Cross-Checking
Every critical component should be checked against:
datasheet
reference manual
errata
hardware design guide
where applicable.
Pinout Is the Beginning of Datasheet Reading — Not the End.
110 — Errata
Semiconductor errata can contain critical restrictions not obvious from the main datasheet.
Silicon Has Revisions Too.
Design review should consider the actual device revision/product lifecycle when relevant.
111 — Absolute Maximum vs Operating Range
A common engineering mistake is designing near:
Absolute Maximum Ratings.
These are normally survival boundaries, not intended operating points.
Design to Recommended Operating Conditions and Required Margin.
112 — Electrical Margin
For every important interface, verify:
against
and relevant loading.
Two Devices Using “3.3 V Logic” Are Not Automatically Electrically Compatible.
113 — Input Leakage
High-value resistor networks and low-current sensors can be affected by input leakage.
Digital Inputs Are Not Always Electrically Invisible.
114 — Output Drive
GPIO current capability and simultaneous switching limits should be understood.
Do not use MCU GPIO as an undefined power driver.
Logic Pins Drive Logic Unless Engineering Proves Otherwise.
115 — Pull-Up / Pull-Down Analysis
Pull resistors establish default state.
Their value should consider:
internal pulls
leakage
speed
power
Default State Is a Circuit Requirement.
116 — Unused Pins
Unused pins should be handled according to:
device requirements
rather than one universal rule.
“Leave NC” and “Tie to Ground” Are Device-Specific Decisions.
117 — No-Connect Marking
Intentional NC pins should be visibly distinguished from accidentally forgotten pins.
An Unconnected Pin Should Be Either Intentionally Unconnected or an Error.
Never ambiguous.
118 — ERC — Electrical Rule Checking
ERC can detect issues such as:
unconnected pins
conflicting outputs
missing power definitions
But:
ERC Does Not Understand the Product.
A design can pass ERC and still be electrically wrong.
119 — Human Review + Automation
The strongest process combines:
Engineering Review.
Automation Finds Violations.
Engineers Find Bad Assumptions.
120 — Custom Electrical Rules
Advanced projects can define additional checks for:
critical nets
power
interfaces
The objective is to move known design knowledge into the tool.
Turn Engineering Experience Into Reusable Design Rules.
121 — Net Naming
Names should communicate function.
Good examples might distinguish:
rather than:
for externally meaningful signals.
A Net Name Should Help Explain What the Signal Does.
122 — Differential Pair Naming
Consistent pair naming helps tools automatically recognize relationships.
Naming Can Carry Constraint Information.
123 — Power Net Naming
Avoid ambiguous rail names.
For example:
3V3_A
3V3_RF
may communicate architecture better than several unrelated “VCC” labels.
Every Important Rail Should Have a Meaningful Identity.
124 — Active-Low Naming
Active-low signals should be visibly identifiable by a consistent convention.
Logic Polarity Should Be Obvious Before Simulation.
125 — Net Classes
Signals can be categorized:
High-Speed
Clock
Analog
Power
RF
Differential
Safety-Critical
These classifications can transfer into PCB rules.
Net Classification Connects the Schematic to Layout Physics.
126 — Constraint Capture
A world-class schematic is not only connectivity.
It also communicates:
What must be special.
Examples:
differential impedance
maximum length
matching groups
keep-out
sensitive placement
Electrical Intent Must Survive Into PCB Layout.
127 — Layout Constraint Notes
Important requirements should not exist only in emails.
A circuit sheet can document:
Place ADC driver close to ADC.
Kelvin sense.
Keep crystal loop compact.
If a Constraint Matters to Electrical Performance, Put It Into the Design System.
128 — Component Placement Constraints
Certain circuits require spatial relationships:
These should be communicated.
Some Schematic Connections Have Distance Requirements.
129 — Controlled-Impedance Requirements
The schematic should identify nets requiring:
single-ended impedance
differential impedance
Final dimensions belong to the PCB stack-up and field solver.
The Schematic Defines the Requirement.
PCB Engineering Defines the Geometry.
130 — Length-Matching Requirements
Length matching may apply within:
differential pairs
synchronous buses
But “everything must be equal length” is not good engineering.
Match Only What Timing Requires to Be Matched.
131 — Timing Budgets
A stronger design derives length constraints from:
instead of arbitrary routing rules.
PCB Constraints Should Come From Electrical Requirements.
132 — Signal Integrity Planning
Before layout, identify which nets may need:
pre-layout simulation
topology analysis
High-Speed SI Starts Before Routing.
133 — Power Integrity Planning
Likewise identify rails requiring:
target impedance
decoupling optimization
low-noise power
PI Starts Before Copper Too.
134 — RF Layout Planning
The schematic should flag:
controlled RF paths
tuning networks
antenna boundaries
RF PCB Layout Cannot Begin With an Unannotated Generic Netlist.
135 — Analog Layout Planning
Precision circuits may need:
guarding
symmetric differential layout
isolation from digital switching
Analog Layout Requirements Are Part of Circuit Design.
136 — Mixed-Signal Partitioning
The schematic should make it clear where:
meets:
Digital.
For example:
Mixed-Signal Boundary Identification Helps Layout Preserve Signal Quality.
137 — PCB Technology Inputs
The schematic may already imply requirements for:
rigid
flex
rigid-flex
layer count
fine pitch
Component Architecture Can Determine PCB Technology.
A dense BGA might force an HDI decision before layout begins.
138 — Footprint Feasibility Review
A technically correct component selection can still be problematic if the footprint requires manufacturing technology incompatible with:
cost
board size
volume
Component Selection and PCB Manufacturability Are Connected.
139 — DFM Feedback During Schematic
Do not wait until layout is complete to ask manufacturing:
Can you build this?
Early feedback may change:
package selection
connectors
component availability
DFM Begins Before D.
140 — IPC Design Context
IPC's current board-design framework identifies IPC-2221 as the generic design standard, with sectional standards covering rigid boards, flex/rigid-flex, HDI and RF/microwave designs. IPC-2221C was released in late 2023.
This supports an important 365PCB philosophy:
Schematic Design and PCB Design Should Not Be Organizationally Isolated.
141 — BOM Generation
The schematic database should generate or support a controlled BOM.
Each component should connect to:
Reference Designator
Quantity
MPN
Manufacturer
Value
Package
and relevant procurement metadata.
The BOM Is the Physical Material Expression of the Schematic.
142 — BOM Consistency
There should not be three conflicting product definitions:
Procurement BOM.
The goal is a controlled source of truth.
One Product Should Have One Controlled Component Definition.
143 — DNP Components
Development boards often include optional parts.
Their status should be explicit:
or:
Do Not Populate.
An Empty Footprint Should Be an Engineering Decision.
Not an assembly question.
144 — Variant Management
A product family may have:
variants.
A controlled variant system can change:
components
configuration
options
without uncontrolled schematic copies.
Product Variants Should Share Architecture — Not Copy-Pasted Errors.
145 — Regional Variants
Wireless products may require different:
radio modules
frequency filters
connectors
depending on region.
Variant control should preserve:
Regulatory + BOM + Firmware Configuration.
146 — Hardware Configuration ID
A board may need:
resistor straps
to identify hardware variant.
Software Should Know Which Hardware It Is Running On.
147 — Hardware Revision Identification
PCB revision can be electrically readable where the product architecture requires it.
This can help firmware maintain compatibility.
Revision Is Product Data.
148 — BOM Lifecycle
An ODM schematic should be designed not only for EVT.
It should survive:
Production + Component EOL + Alternate Qualification.
Prototype Availability Is Not Production Sustainability.
149 — Alternate Parts
Alternates should not be approved only because:
same package, similar headline specifications.
Review:
electrical behavior
timing
thermal
footprint
firmware dependency
Pin-Compatible Is Not Always Function-Compatible.
150 — Critical Component Identification
Some components deserve stronger lifecycle control.
Examples:
processor
specialized sensor
The BOM Has Strategic Components and Commodity Components.
Treat them differently.
151 — Value Engineering
Cost optimization should occur without damaging product requirements.
A design review can ask:
Is this part overspecified?
Can functions be consolidated?
Can component count decrease?
But:
Never Remove Required Margin Just Because the Spreadsheet Likes the New BOM.
152 — Component Count
Fewer parts can reduce:
assembly
purchasing
failure opportunities
but excessive integration can increase:
single-source risk
Fewer Components Is Not Automatically Better Architecture.
153 — Schematic Simulation
Certain circuits should be simulated before hardware.
Examples include:
Analog
Power
Filters
Protection
Timing
depending on project needs.
Simulate the Behavior That Creates Project Risk.
154 — DC Operating-Point Analysis
Analog circuits can be checked for:
bias
node voltage
current
before prototype.
A Circuit Should Make Sense at DC Before It Becomes Dynamic.
155 — AC Analysis
Amplifiers/filters can be evaluated for:
bandwidth
gain
phase
Frequency Response Is Circuit Behavior the Schematic Can Predict.
156 — Transient Analysis
Transient simulation can evaluate:
startup
pulses
switching
timing
where model quality permits.
157 — Worst-Case Circuit Analysis
Nominal values do not represent production.
Analysis can include:
Tolerance
Temperature
Supply Variation
Device Variation.
The Product Must Work at Its Corners — Not Only at Its Nominal Point.
158 — Monte Carlo Analysis
Statistical simulation can estimate the distribution of selected circuit behavior across tolerances.
Useful for precision analog or filter designs where margin is tight.
Manufacturing Creates Distributions.
Engineering Should Anticipate Them.
159 — Derating Review
Components should be reviewed against appropriate:
voltage
current
temperature
margin.
Maximum Rating Is Not the Design Target.
160 — Failure-Mode Analysis
A design review can ask:
If this component opens, what happens?
If this sensor shorts, what happens?
If communication disappears, what happens?
Good Schematic Engineering Considers the Abnormal Circuit Too.
161 — Single-Point Failures
For higher-risk products, identify failures that can disable:
entire product
safety function
communication
power
Architecture Determines Failure Containment.
162 — Diagnostics by Design
Where appropriate, add observability:
PGOOD
Fault Output
Current Monitor
Temperature
Status GPIO.
A Circuit That Can Explain Its Failure Is Cheaper to Support.
163 — Design Reviews
A world-class schematic should pass several reviews rather than one final check.
Does the design implement system requirements?
Does each block work electrically?
Are voltage/timing/protocol boundaries correct?
Are rails, loads and sequencing correct?
Are high-speed and power constraints identified?
Can it be manufactured and tested?
Schematic Review Is a Multi-Disciplinary Engineering Activity.
164 — Independent Review
The engineer who created the schematic already knows what they intended.
A second engineer sees what is actually documented.
Independent Review Finds the Difference Between Intent and Implementation.
165 — Review Checklist
Checklists should capture historical engineering knowledge.
But they should not replace reasoning.
A Checklist Prevents Forgetting Known Risks.
Engineering Finds New Risks.
166 — Datasheet Review Matrix
For large processors, it can be valuable to track requirements such as:
Power Pin
Required Capacitor
Strap
Reset
Clock
Unused Pin
against implementation.
Complex IC Integration Is Requirements Management at Component Scale.
167 — ERC Closure
Every ERC warning should be:
or
Explicitly Justified.
Do not let hundreds of ignored warnings create an environment where real warnings disappear.
Warning Noise Hides Design Risk.
168 — Zero-Unexplained-Warning Philosophy
It is:
Zero Unexplained Warnings.
Every remaining exception should be intentional.
169 — Netlist Integrity
Before PCB layout, verify:
correct net connectivity
component assignments
design hierarchy
The PCB Tool Will Faithfully Route Whatever Netlist You Give It.
Including the wrong one.
170 — Forward Annotation
Changes from schematic to PCB should maintain controlled synchronization.
The relationship must not become:
schematic says one thing, PCB says another.
Electrical Definition and Physical Implementation Must Remain Synchronized.
171 — ECO — Engineering Change Order
After release, changes should be controlled.
An ECO should identify:
What Changed
Why
Which Products
What Verification Is Required.
A Schematic Change Is a Product Change.
172 — Change Impact Analysis
Changing one resistor can potentially affect:
function
calibration
firmware
compliance
testing
Component-Level Change Does Not Always Mean Component-Level Impact.
173 — Revision Control
Every release should have:
controlled version
date
author/reviewer
change history
If You Cannot Identify the Design Version, You Cannot Reproduce the Product.
174 — Source-Control Direction
Modern electronic design increasingly benefits from stronger control of:
design versions
libraries
configuration
reviews
ECAD Is Moving Toward the Same Engineering Discipline Software Has Used for Years.
175 — Digital Thread
The desired product information chain is:
IPC-2581C explicitly supports intelligent PCB/assembly manufacturing data and bidirectional DFX information exchange, reflecting this broader digital-thread direction.
Product Data Should Flow — Not Be Recreated.
176 — Design-to-Manufacturing Data
The ultimate goal is to reduce ambiguity between:
and
Manufacturer.
IPC identifies IPC-2581 as an intelligent XML-based design-through-manufacturing data methodology, while current IPC DFM tools support formats including IPC-2581, ODB++ and Gerber for manufacturing analysis.
Every Manual Translation Is an Opportunity for Information Loss.
177 — Intelligent Manufacturing Handoff
The future is not:
PDF schematic + Gerber + scattered emails.
It is increasingly:
Feedback.
Manufacturing Should Receive Design Intent — Not Only Geometry.
178 — Schematic Notes
Notes can preserve intent such as:
tolerance
criticality
selection rules
But excessively long notes make the schematic unreadable.
Use Notes to Explain What the Circuit Cannot Explain by Connectivity Alone.
179 — Calculation Documentation
Critical circuits may have separate calculations for:
gain
cutoff frequency
power dissipation
tolerance
A Final Component Value Should Have an Engineering Reason Behind It.
180 — Design Decision Records
For complex products, documenting important decisions can prevent future confusion.
For example:
Why did we select this MCU?
Why is this rail isolated?
Why is this interface level shifted?
Engineering Memory Should Live in the Project — Not Only in the Engineer.
181 — Customer Requirements Integration
ODM customers may provide:
Product Specification
Existing Schematic
Legacy Board
Block Diagram
Datasheet
or even only:
We need a product that does X.
365PCB's role is to convert incomplete input into an engineering-defined electrical architecture.
ODM Schematic Design Begins Before the Schematic Exists.
182 — Existing-Schematic Review
Sometimes the project does not require starting from zero.
365PCB can review an existing design for issues such as:
power
interfaces
protection
components
testability
manufacturing
Redesign Only What Creates Value.
183 — Legacy Product Redesign
An older product may require redesign because of:
component EOL
cost
performance
compliance
availability
This should preserve required product behavior while modernizing architecture.
A Redesign Is Not Successful If the New Board No Longer Behaves Like the Product Customers Already Depend On.
184 — Reverse Engineering Into Controlled Documentation
Where legitimate existing product documentation is incomplete, a project may need to convert available authorized design information into a controlled schematic architecture.
The objective is:
Recover Engineering Definition.
Not merely reproduce drawings.
185 — Prototype-Focused Schematic
Early prototypes may include additional:
test points
jumpers
optional components
debug connectors
to accelerate learning.
EVT Hardware Should Be Designed to Teach the Engineering Team.
186 — Production-Focused Schematic
After learning, unnecessary development features may be removed where appropriate.
But only after proving they are no longer needed.
Prototype Flexibility and Production Optimization Are Different Design Goals.
187 — EVT Schematic Freeze
Before EVT PCB layout, the team should have enough architectural confidence to build meaningful hardware.
The design may not be perfect.
But:
Major Unknowns Should Be Intentional Experiments.
188 — EVT Learning
EVT can reveal:
electrical mistakes
component behavior
measurement issues
power interactions
Every discovery should feed the next schematic revision.
Prototype Hardware Is Physical Feedback on the Schematic.
189 — DVT Schematic
DVT hardware should increasingly resemble final architecture.
Changes should become:
corrective
validation-driven
rather than fundamental architecture experiments.
DVT Is Not the Time to Discover the Basic Power Tree Was Wrong.
190 — PVT Schematic
By PVT, schematic revisions should be tightly controlled.
The focus becomes:
manufacturing
alternates
calibration
test
release control.
PVT Transforms Design Into Product Configuration.
191 — Design Release Package
A strong electrical release can include:
Schematic
BOM
PCB Data
Assembly Data
Programming Requirements
Test Requirements
Drawings
Revision Information
A Product Cannot Be Manufactured Reliably From a Schematic Alone.
192 — Schematic Deliverable Quality
The final schematic should be understandable to:
Original Engineer
PCB Designer
Firmware Engineer
Test Engineer
Manufacturing Engineer
and:
Another Engineer Five Years Later.
Good Documentation Outlives the Person Who Drew It.
193 — Cross-Functional Review
A schematic review should bring in relevant disciplines.
For example:
Are MCU pins and boot states correct?
Are connectors and physical interfaces right?
Are parts and test access feasible?
Are interface constraints understood?
Complex Electronics Cannot Be Designed in Departmental Isolation.
194 — Mechanical Interface Definition
Connectors, switches, LEDs and sensors have mechanical positions.
Electrical schematic and mechanical CAD should agree.
The Product Has One Connector Position — Not an Electrical Version and a Mechanical Version.
195 — PCB Layout Handoff
Before layout starts, the PCB engineer should receive more than a netlist.
They should understand:
Architecture
Critical Circuits
Placement Priorities
Power
Clock
High-Speed
Analog
RF
Safety
Mechanical Constraints.
PCB Layout Is Physical Implementation of Electrical Intent.
196 — Schematic-to-Layout Review Meeting
For difficult designs, one of the highest-value steps can simply be:
Electrical Engineer + PCB Engineer Reviewing the Design Together.
Because layout questions often expose schematic assumptions.
197 — Placement-First Feedback
The PCB engineer may discover that:
connector pinout creates crossing
analog section cannot fit
That feedback should be allowed to modify schematic decisions.
The Best Engineering Process Allows Physical Reality to Influence Logical Architecture.
198 — Constraint-Driven Design
World-class ECAD work increasingly treats:
Connectivity
Rules
Constraints
Component Data
as one design definition.
A Netlist Tells the PCB What Is Connected.
Constraints Tell the PCB How Those Connections Must Behave.
199 — AI-Assisted Schematic Design
AI can increasingly assist activities such as:
component search
datasheet extraction
design-rule checking
architecture comparison
documentation review
But:
AI Should Accelerate Engineering — Not Own Electrical Sign-Off.
A generative system can confidently suggest an electrically wrong connection.
200 — Automated Datasheet Intelligence
One promising direction is automatically turning datasheet requirements into structured checks:
This could reduce human omission.
The Future Schematic Will Be Checked Against More Than a Netlist.
It will increasingly be checked against:
Component Knowledge.
201 — Automated Design Review
A future ODM workflow can compare:
vs.
vs.
and detect:
missing functions
voltage mismatch
unsupported variants
Design Automation Is Most Valuable When It Converts Known Engineering Rules Into Repeatable Checks.
202 — Model-Based Product Definition
At the highest systems level, schematic design increasingly sits inside a broader digital model:
Verification.
The Schematic Is One View of the Product — Not the Entire Product Model.
203 — Reusable Circuit Blocks
Mature ODM organizations build validated architecture knowledge.
Examples:
Known Power Input
Known MCU Core
Known Ethernet PHY
Known Sensor AFE.
But reusable blocks should have:
defined assumptions
version control
validated limits
Reuse Engineering Knowledge — Not Old Mistakes.
204 — Platform Architecture
A family of products can share:
Processor Core
Power
Security
Firmware Infrastructure
while changing:
Mechanical.
Good Schematic Architecture Can Become a Product Platform.
205 — Schematic Metrics
The quality of a schematic should not be judged by:
number of pages.
or:
number of components.
Better questions are:
Is the architecture clear?
Are assumptions controlled?
Are risks visible?
Can it be verified?
Can it be manufactured?
Complexity Should Be Organized — Not Hidden.
206 — What Does World-Class PCB Schematic Design Look Like?
At the highest level:
That is the difference between:
and
Engineering the Electrical Definition of a Product.
Depending on project scope, a 365PCB ODM schematic-development program may include:
Product Electrical Requirements
Functional Block Diagram
System Electrical Architecture
Schematic Hierarchy
Processor / MCU / MPU Architecture
FPGA Integration
Processor Pin Planning
FPGA Bank / Pin Planning
Boot Configuration
Reset Architecture
Clock Architecture
Memory Architecture
DDR Interface Definition
Power-Tree Architecture
Power Sequencing
Power Monitoring
Decoupling Architecture
Analog Circuit Design
ADC / DAC Architecture
Sensor Interface
RF Circuit Integration
Wireless Module / Chip Integration
Antenna Interface
Motor-Control Interface
Power Electronics Control Interface
BMS Interface
Ethernet
USB / USB-C
CAN / CAN FD
RS-485 / RS-422
UART / SPI / I²C
High-Speed Interface Definition
Differential-Pair Identification
AC-Coupling Definition
Level Translation
External I/O Protection
ESD / Transient Protection
Isolation Architecture
Connector Definition
Security Hardware Interface
Programming Interface
Debug Interface
Test-Point Definition
DFT Inputs
Boundary-Scan Inputs
Manufacturing-Test Inputs
Symbol / Footprint Library Development
Symbol-to-Footprint Verification
BOM Generation
Component Lifecycle Review
Alternate-Part Planning
Product Variant Definition
Hardware Revision Identification
Schematic Simulation
Worst-Case Analysis Inputs
Electrical Rule Checking
Design Review
SI Constraint Capture
PI Constraint Capture
Layout Constraint Definition
Placement Requirements
High-Speed Net Classes
Controlled-Impedance Requirements
DFM Inputs
DFT Inputs
Schematic Revision Control
ECO Management Inputs
EVT Release Documentation
DVT Revision Documentation
PVT Production Release
PCB Layout Handoff Package
The exact depth should follow:
Product Complexity + Processor / FPGA Complexity + Interface Speed + Analog Precision + RF + Power + Safety + Reliability + Production Volume.
Schematic-design capability is project-specific. The required engineering depth depends on the system architecture, processor and memory platform, interface speeds, analog precision, RF content, power architecture, safety requirements, mechanical constraints, product lifecycle and manufacturing environment.
We Don't Judge a Schematic by Whether the Nets Connect.
We Judge It by Whether the Product Architecture Is Electrically Correct, Verifiable, Manufacturable, and Ready for PCB Implementation.
You can begin with:
or simply:
Tell Us What the Product Must Do Electrically.
365PCB can help translate:
Don't Just Draw the Connections.
Define the Architecture.
Organize the Functional Blocks.
Plan the Power Domains.
Plan the Pins.
Engineer the Clock.
Control the Reset.
Define the Interfaces.
Protect the External Boundaries.
Capture the Layout Constraints.
Design the Testability.
Control the BOM.
Review the Assumptions.
Preserve the Design Intent Into Manufacturing.
365PCB PCB Schematic Design connects:
Requirements + System Architecture + Circuit Design + Component Engineering + SI/PI + DFM/DFT + Manufacturing
into one coordinated product-development process.
A Schematic Is Not a Drawing of Components.
It Is the Electrical Definition of the Product.
[Discuss Your Product Architecture]
[Submit Your Existing Schematic]
[Request a Schematic Engineering Review]
English
