Core Capabilities & Lead Time
Design & Engineering Support
Manufacturing Capabilities
Automated processes: Wire cutting, stripping, crimping, soldering, and ultrasonic welding
Quality Testing
Electrical: Continuity testing, hipot (high-potential) testing
Mechanical: Pull-force testing, environmental simulation (temperature/humidity)
Connector Integration & Customization
Connector brands: Molex, TE Connectivity, JST, Deutsch, Amphenol
Custom features: Color coding, labeling, braided sleeving, overmolding, EMI shielding
Lead Time
Material & Component Options

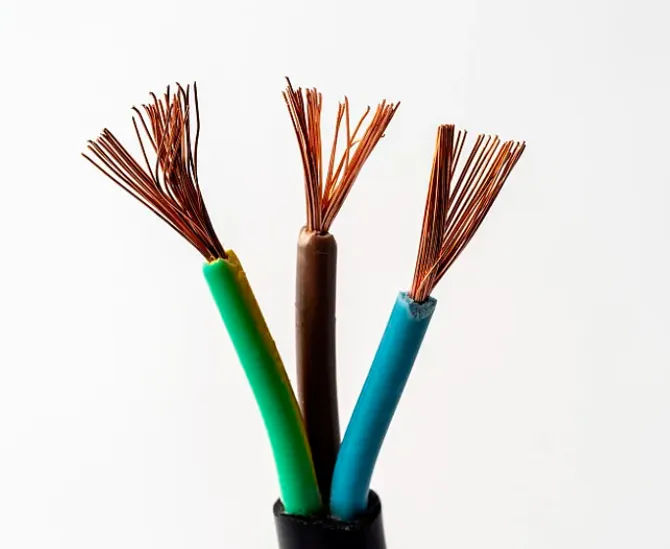

Wires & Cables
Insulation: PVC (cost-effective), PTFE (high-temperature), silicone (flexible), XLPE (chemical-resistant)
Types: Shielded (EMI protection), twisted pair (signal integrity), coaxial (high-frequency)
Connectors
Styles: Circular, rectangular, D-sub, automotive-specific, waterproof (IP67/IP68), RF connectors
Protective Coverings
Contact Finishes
Tinned copper (corrosion-resistant), silver-plated copper (high conductivity), nickel-plated (wear-resistant), gold-plated (high reliability)
Labeling Solutions
Application Areas
Automotive & Electric Vehicles (EVs): Engine bay harnesses, battery wiring, infotainment system cables (heat/vibration-resistant)
Aerospace & Defense: MIL-spec harnesses, avionics cabling, shielded assemblies (EMI protection, ruggedized)
Industrial Automation: Robotics wiring systems, sensor harnesses, machine control cables (high durability)
Medical Equipment: Diagnostic device harnesses, patient monitoring systems (biocompatible materials)
Telecommunications: Data center harnesses, fiber optic cable assemblies (high-speed signal transmission)
Renewable Energy: Solar panel wiring, wind turbine cable assemblies (weather-resistant)
Why Choose Our Cable Harness Assembly Services
IPC-certified technicians: Ensures compliance with IPC/WHMA-A-620, the global standard for wire harness assembly
Flexible order quantities: Supports prototype development, low-volume testing, and high-volume production
Strict quality control: 100% electrical testing + visual inspection to eliminate defects
Fast delivery: Standard lead times of 7–12 days + expedited options for urgent projects
Cost efficiency: Competitive pricing without compromising on material quality or assembly standards
FAQ

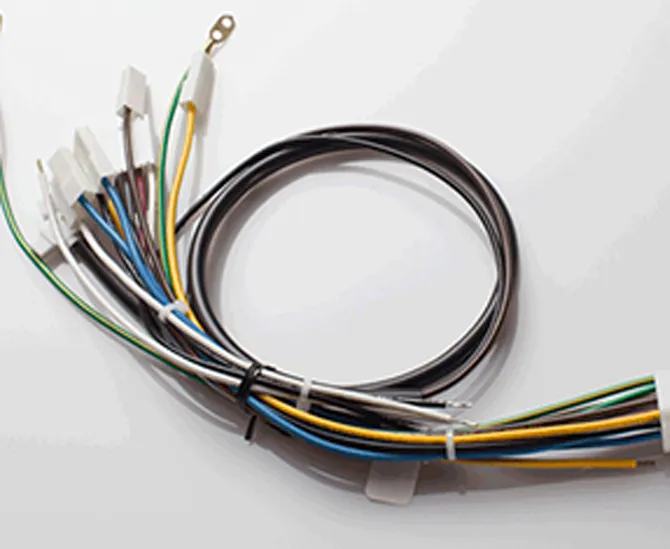

Q1: What is cable harness assembly and how does China 365PCB manufacture it?
A1: Cable harness assembly organizes multiple wires/cables into a single, structured unit for simplified installation and reliable connectivity. At China 365PCB, we use automated cutting, crimping, soldering, and ultrasonic welding, plus rigorous testing, to produce durable harnesses.
Q2: Can you produce custom cable harness assemblies for automotive applications?
A2: Yes, we specialize in custom automotive harnesses, including engine bay wiring (heat-resistant), battery harnesses (high-current), and infotainment system cables, all designed to withstand automotive operating conditions.
Q3: Do you provide cable harnesses with waterproof connectors?
A3: Absolutely. We offer IP67/IP68-rated waterproof cable harness assemblies, ideal for outdoor, under-hood, or harsh environment applications where moisture resistance is critical.
Q4: What standards do your cable harness assemblies comply with?
A4: All our cable harness assemblies meet IPC/WHMA-A-620 (the industry standard for wire harness manufacturing) and can be tailored to comply with UL (electrical safety), CE (European compliance), and RoHS (environmental safety) standards.
Q5: How long does it take to produce a custom cable harness assembly?
A5: Standard lead time for custom cable harness assemblies is 7–12 business days. For urgent projects, we offer expedited production services to meet tight deadlines.
